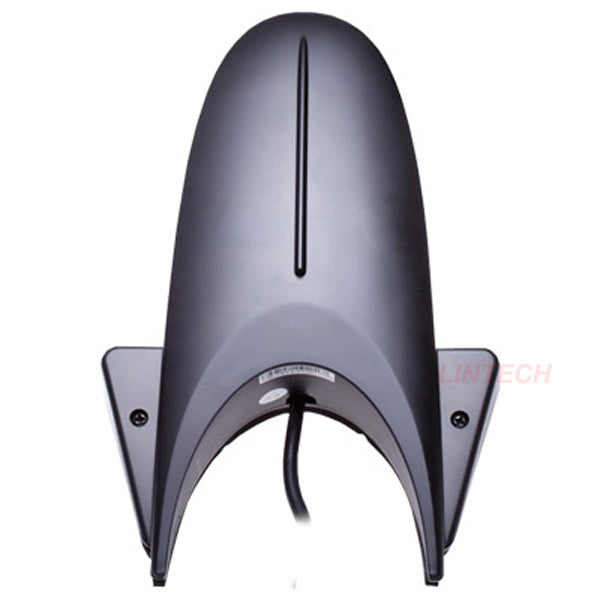

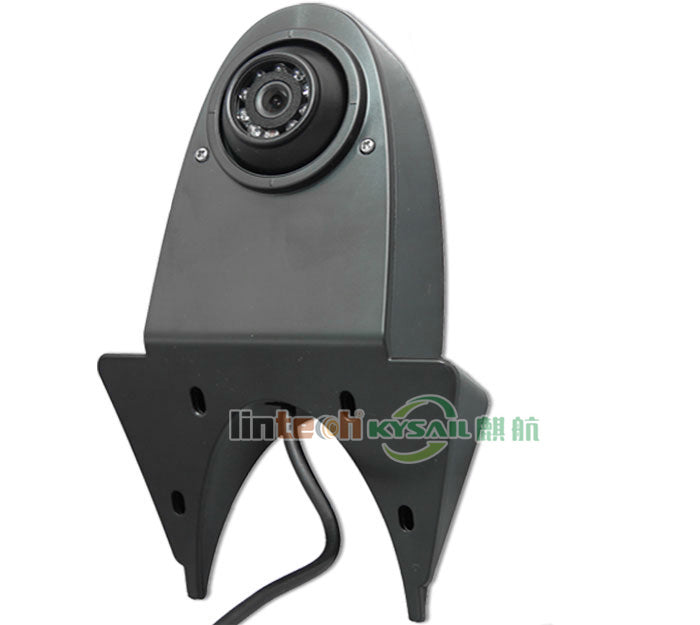

Waterproof RV Cam for Mercedes Benz Sprinter and Universal Vans, LC-009C
Waterproof RV Cam for Mercedes Benz Sprinter and Universal Vans, LC-009C
** Fast Delivery, Lead-Time 2~5 Days.
** AHD 1080P/720P & CVBS High Resolution
** IP69K Waterproof Rate
** Recommended for: Caravans, Buses, Motor Homes, Trucks, Trailers & Horse Floats
** CE, FCC, E-Marked, EMC
- Reply within 12H
- $ € £ Factory Price
- Heavy Duty Rugged Design
Model No.:LC-009C
- For Mercedes Benz Sprinter / Universal Vans
- Sensor: 1/3″ CMOS CCD Sensor 700TVL
- Lens: 2.5 mm
- View angle: 120°
- IR LED: 9 pcs
- Night vision distance: 5-7 m
- Waterproof IP rating: IP68
- Certificates: CE/FCC/E-mark
- Warranty: 1-3 Years
| Subject | Standard Parameter | Optional Parameter | Optional Parameter |
|---|---|---|---|
| Image sensor | 1/3" CMOS | 1/3” CMOS AR0130 | NVP2441H + IMX323 CMOS |
| Resolution | N:510×492 pixels P: 500×582 pixels |
1280*960 (1.2M Pixels) |
1280*960 (1.2M Pixels) |
| Horizontal Resolution | 700TVL | 960P | 1080P |
| TV System | NTSC/PAL | ||
| Lens | 2.5mm | 2.8mm | 2.8mm |
| View angle | 120 degree (90 Horizotal,75 Vertical) | Horizontal 90 , Vertical 50, Diagonal 102 | Horizontal 105 , Vertical 53, Diagonal 122 |
| Power supplier | 12VDC | ||
| Current consumption | 150mA | ||
| Power consumption | 1.8W @ 12VDC | ||
| Min illumination | 0 Lux (LED ON) Night Vision | ||
| IR LED | 12 pcs (Night vision distance 5m) | ||
| Waterproof rating | IP69K | ||
| Packing weight | 0.4KG | ||
| Operation temperature | -20 ~ +70 C-degress |
