Motorcycle BSD Rardar

About this Radar BSD System

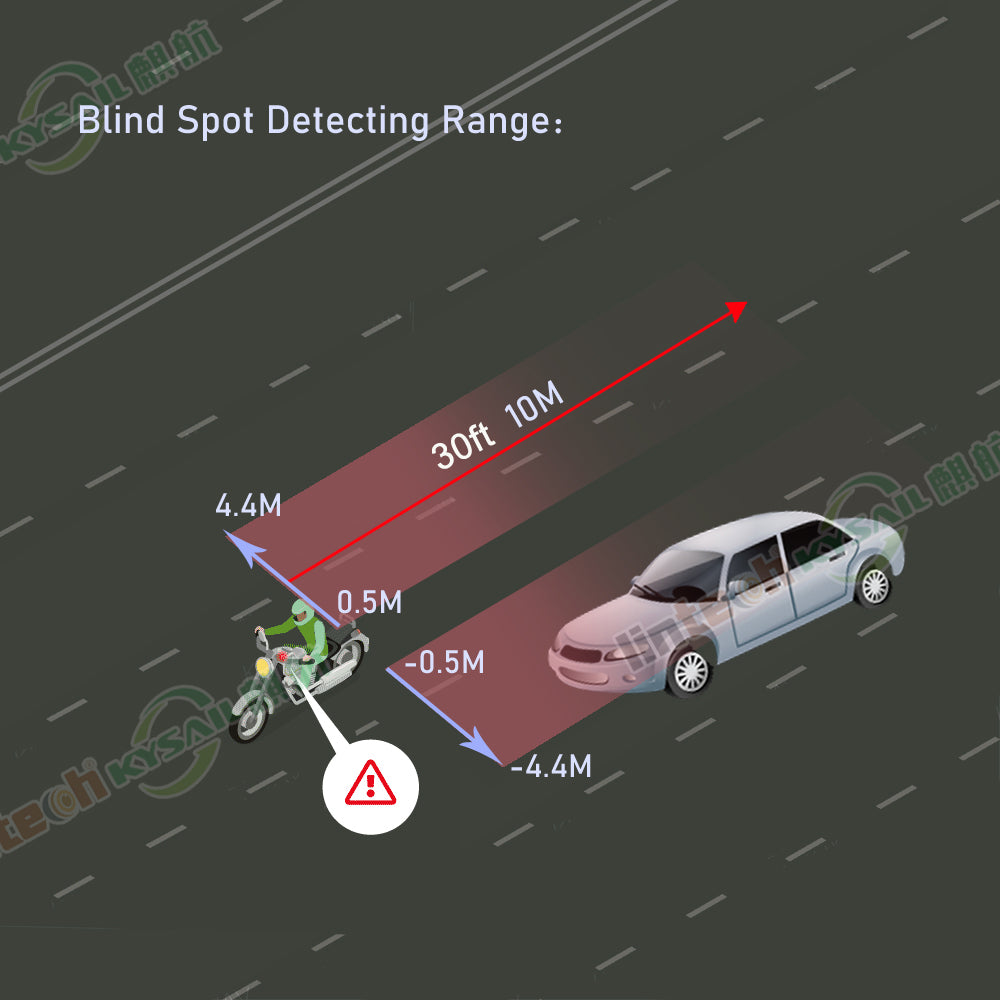

This product can give early warning to dangerous targets in the left and right rear of motorcycle.

1. Wide field of view: 150° horizontal detecting range, helps rider to get more time to react and respond to emergencies.

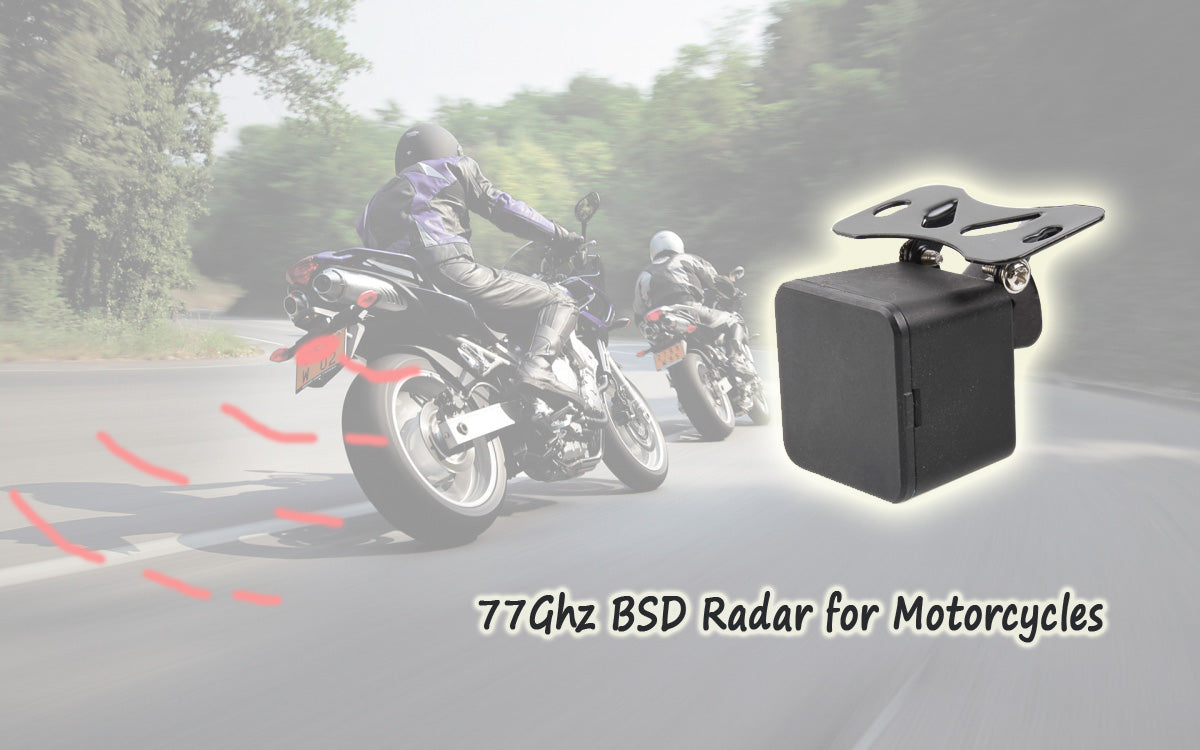

2. High precision: This 77Ghz Radar achieves super-good performance in range resolution, velocity measurement, and accuracy.

3. Durable and flexible: Aluminum alloy case and high technology offer a stable performance against harsh environments such as temperatures from -40℃ to +70℃.

4. Up to 64 targets: Detecting 64 targets simultaneously in a 50m maximum detecting range.

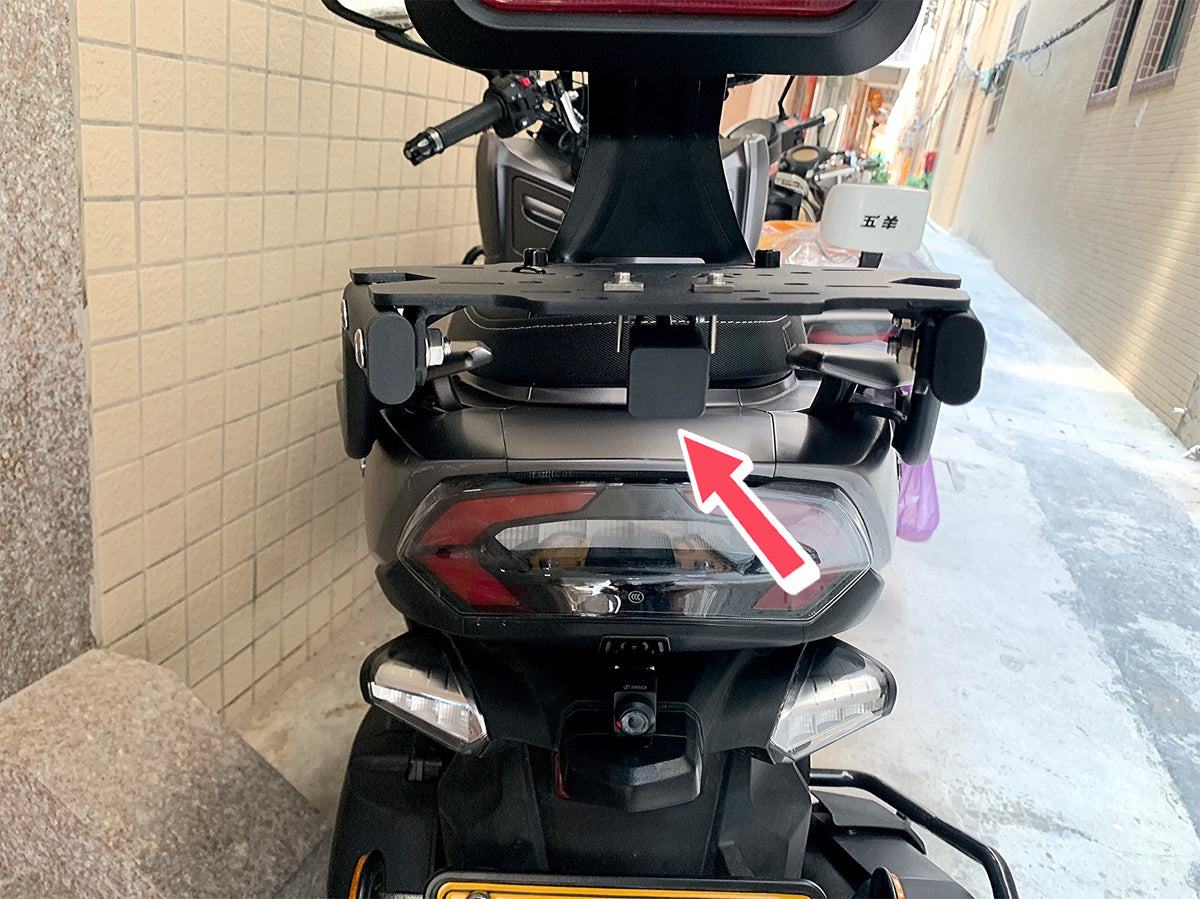

5. Easy to Install: Small and Compact sizes make the product quite easy to install within 1 hour.

6. Waterproof Rating IP67: superior performance against water, dust and excellent performance in high& low-temperature environments.

-- Dust & waterproof compliant: IP67

-- Distance resolution: 0.2 m

-- Ranging accuracy Better than: 0.1 m.

-- Detection range: 0-50 m

-- Horizontal angle range: 150°

-- Pitch angle range: ±10°

-- Velocity measurement accuracy: 0.1m/s

-- Input Voltage Range: 9V – 16V, 12V (Typical)

-- Current Consumption: <200mA ± @12V (2.5W)

-- Operating temperature: -40°C ~ +80°C

Weight: n.w.: 980 g./ 2.16 lbs. (pair), (total package)

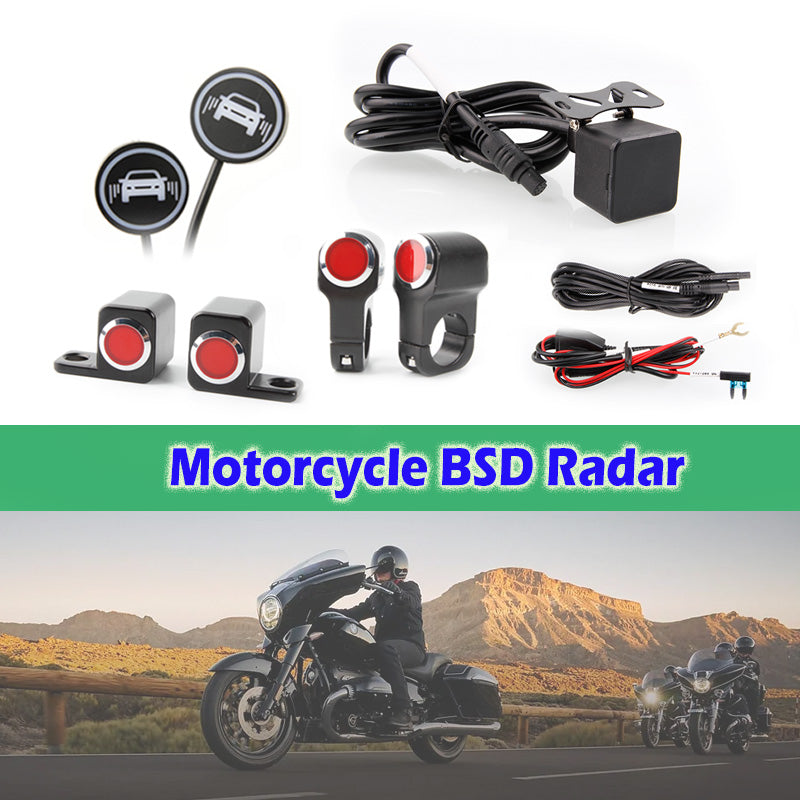

Package:

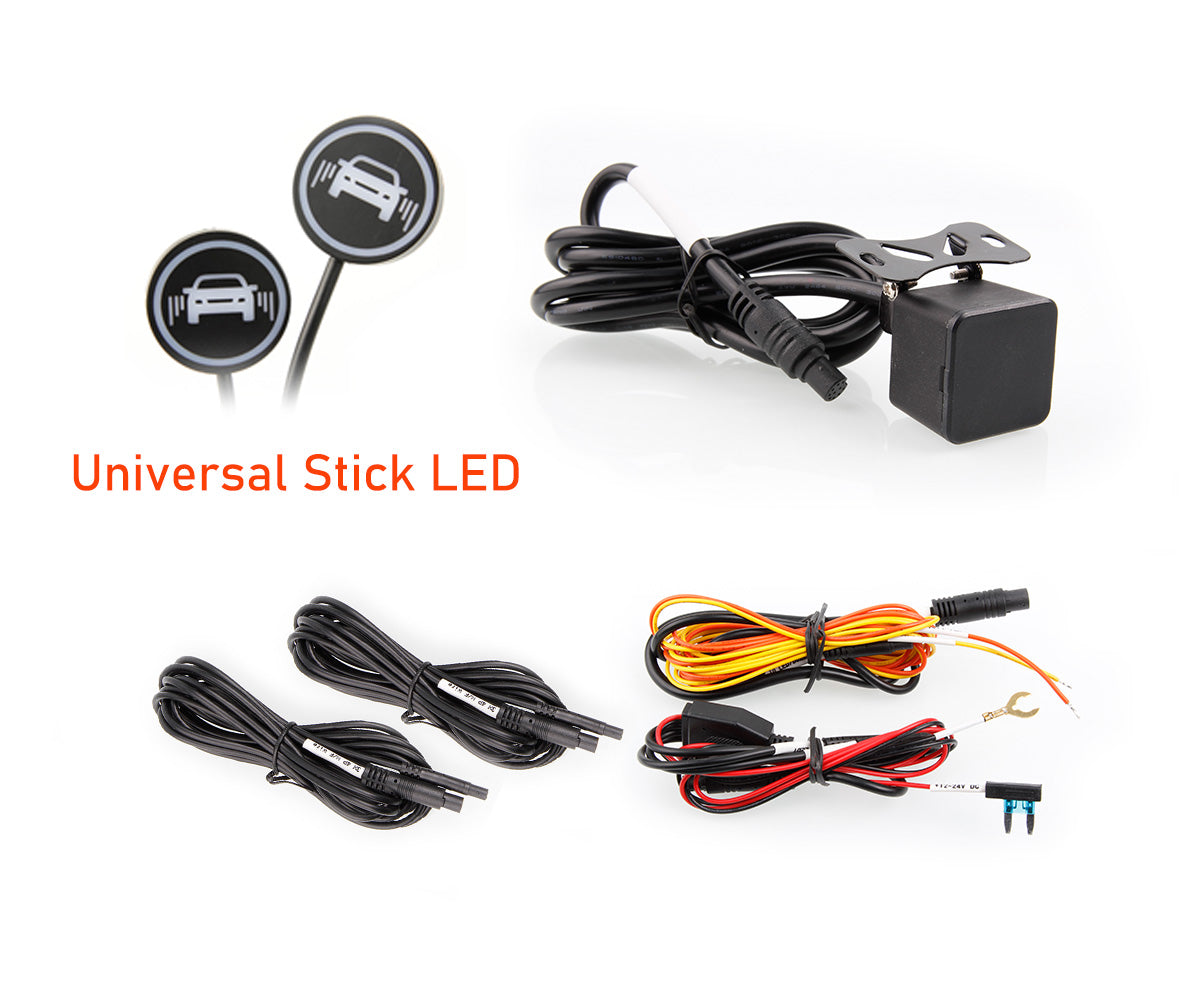

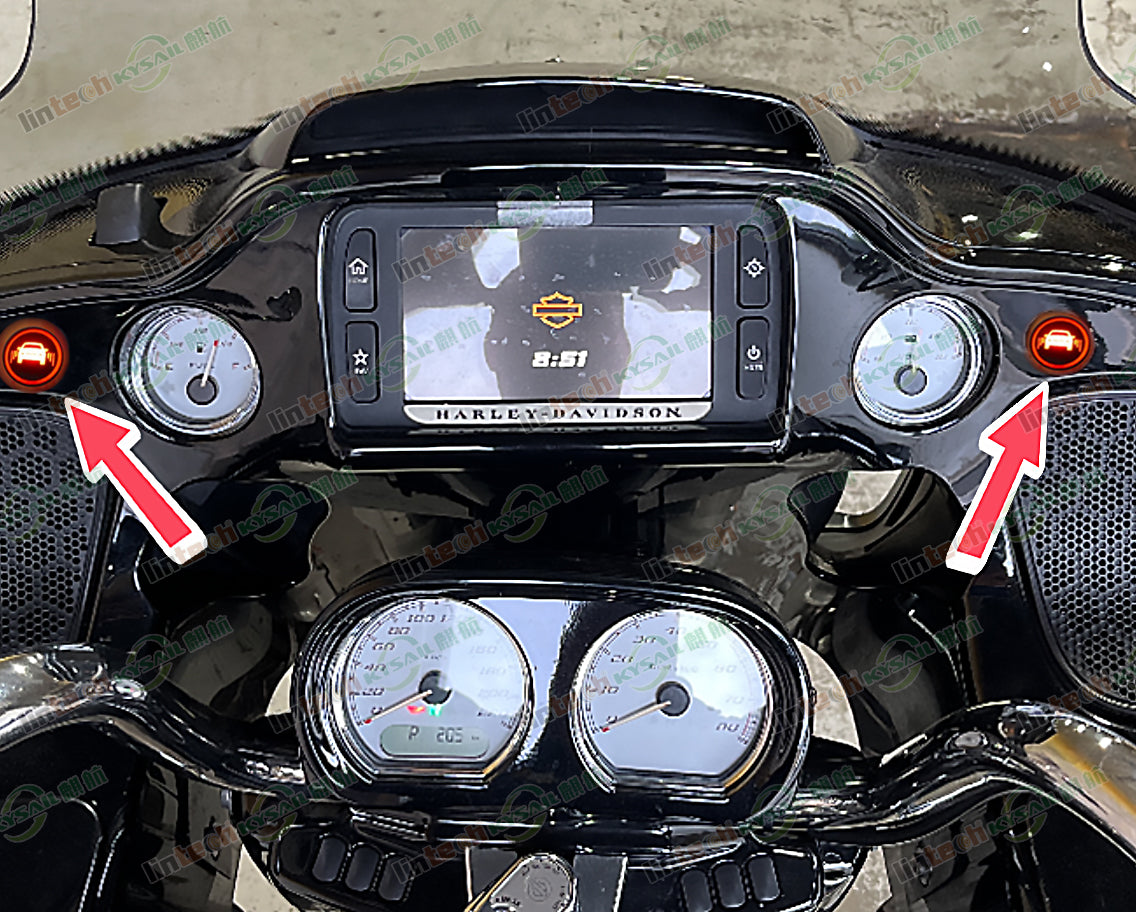

** A pair of LED lights (Stick Type Thin LED),

** Extension cable for LED 1.8M x 2pcs,

** Power cable unit x1,

** Radar unit x 1

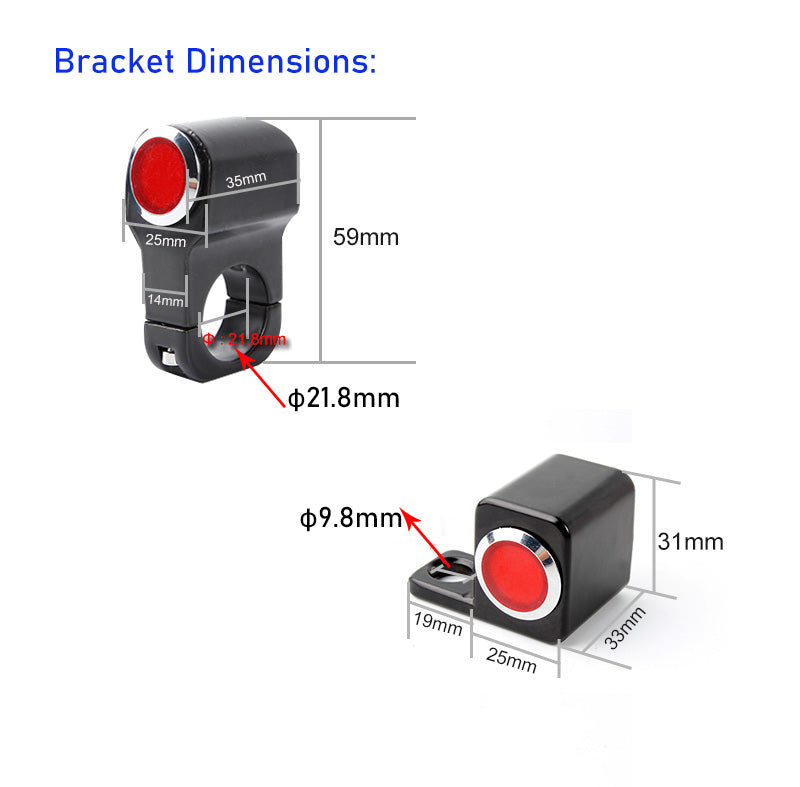

Other Optional bracket:

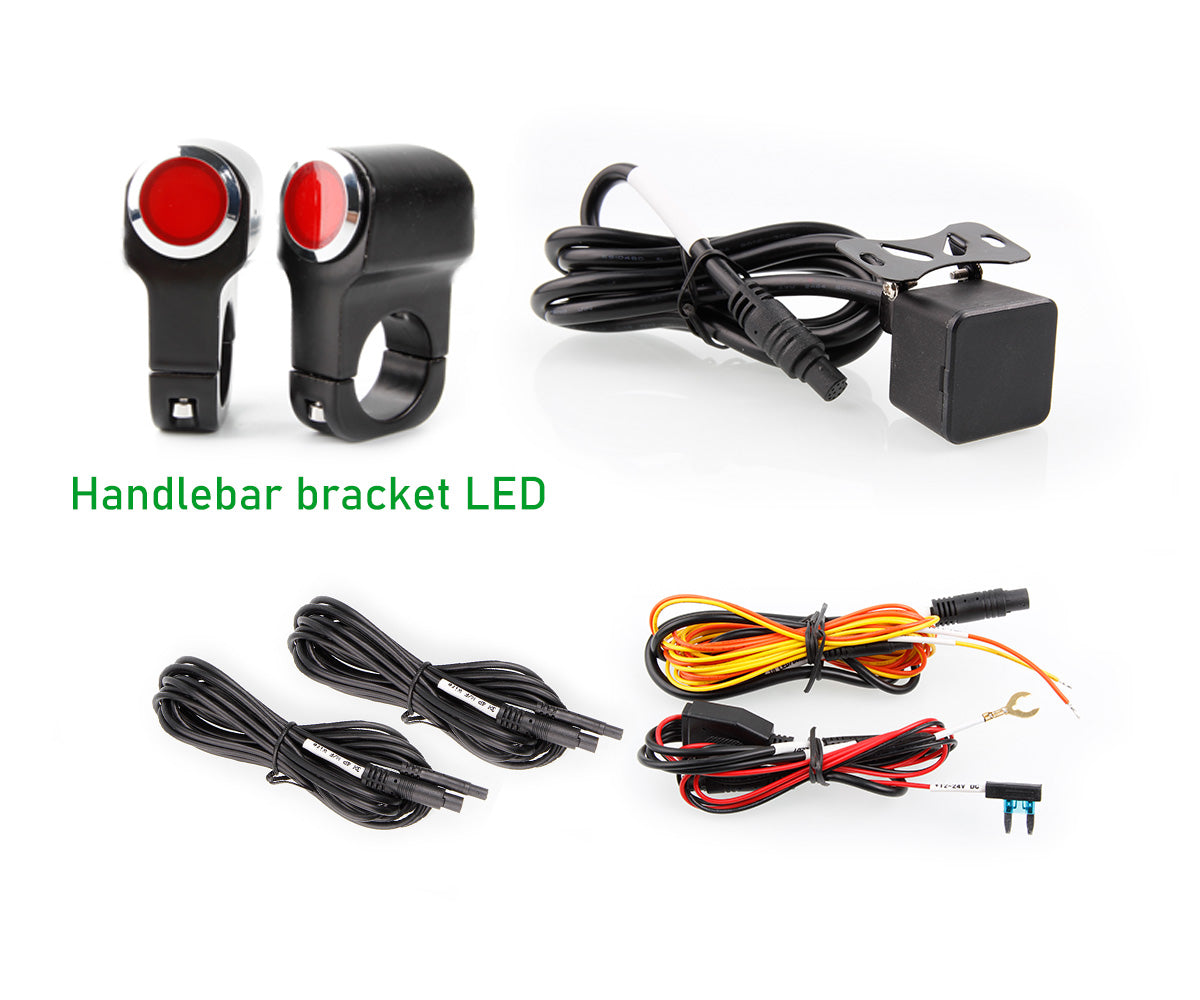

-- Handlebar brackets x 2

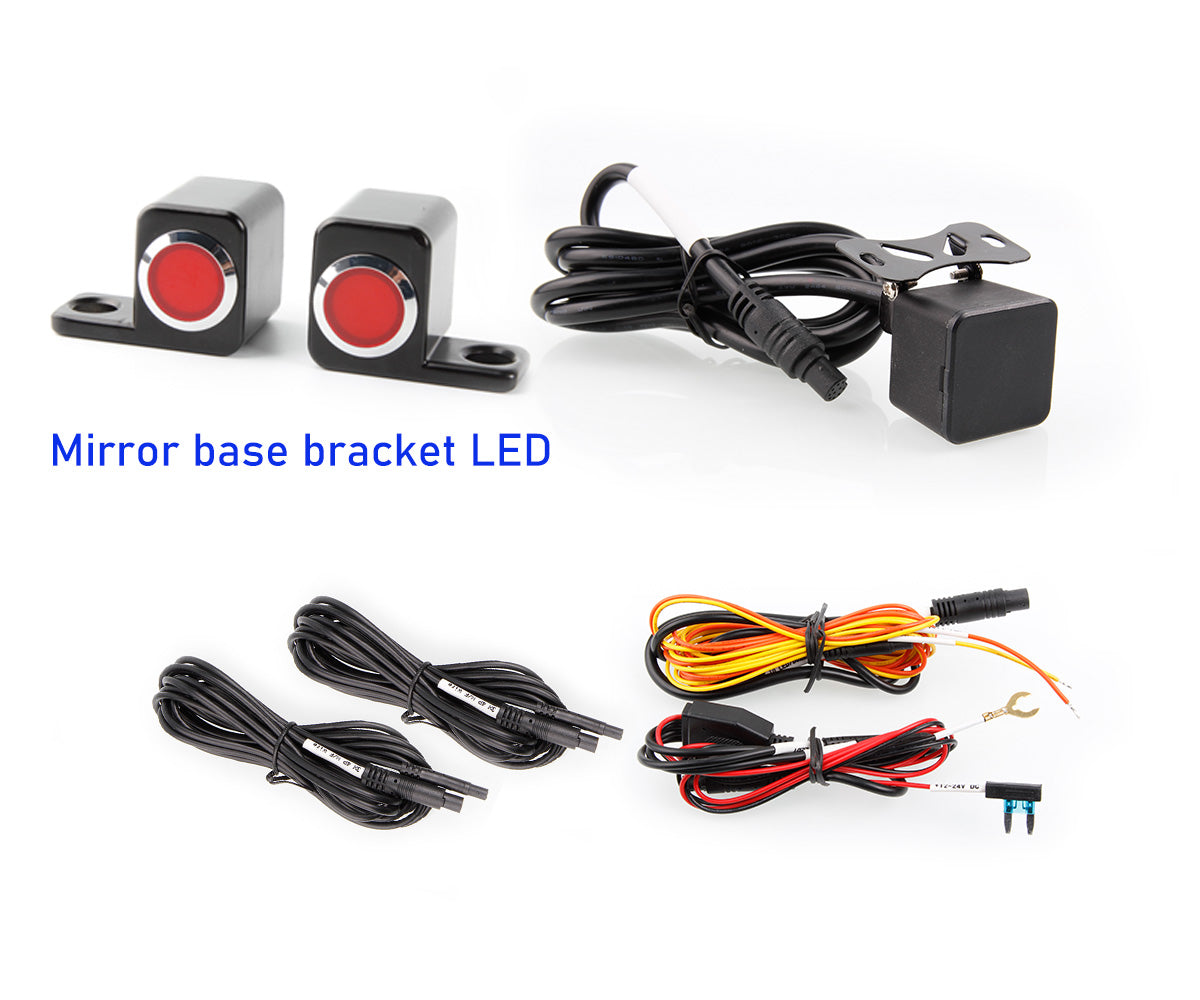

-- Mirror base brackets x 2
