Reverse Backup Camera System for Tractor Trailer

utures:

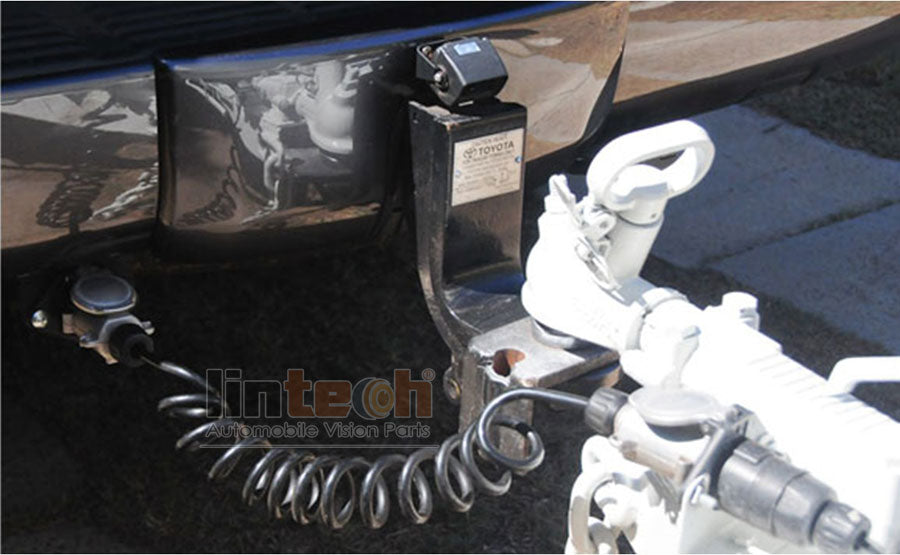

• Trailer cable for 1 cameras to connection
• Monitor with 2 CHs input, 800*R.G.B*480 dightal / AHD 1024*600 optional
• Camera built in 20pcs IR LED, waterproof rate IP69K
• Power supply：12V~24VDC

Operation Description:
1. Constantly working, back view 2 camera videos display on 7″ monitor.
2. When driver switch to R-gear to reversing, 7″ LCD will automatic ON and switch to display the Rear view camera LC-020A for reversing aid. After finished reversing aotumatic turn to 4CHs quad display.

Specification of Monitor / Camera:

Monitor LM-070F2:
— 2CHs Resolution 800 x 400 R.G.B digital screen / AHD 1024*600 optional

— Top-rated monitor for trucks buses and other vehicles.

— Full function with remote
— Heavy duty and strong housing / bracket, good vibration proof.

— Trucks Quad function 4CHs split version, 3 splits, 2 splits images are available.

— With sun visor for better view in strong light condition

— Reversing guide lines:  Red – Yellow – Green  with regerence distance (adjustable according to camera’s installed position).

Specification of Cameras

LC-020A:

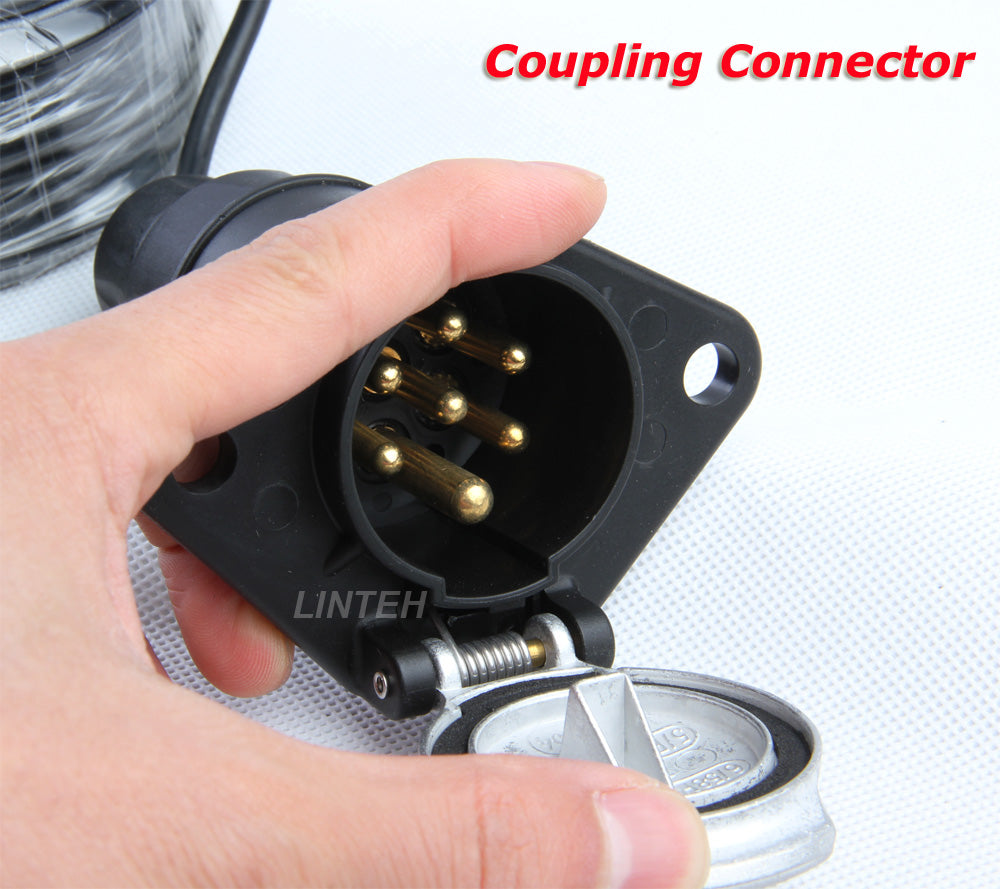

–4Pin DIN waterproof screw on connector

–Standard rear view camera

-The automatic day/night sensor and infrared LEDs to provide clear image in dull condition

(1)1/3'' CMOS sensor / AHD 720P/960P/1080P optional

(2)TV system : PAL/NTSC

(3)Resolution: 700 TV lines

(4)With 20 IR LED light ,night vision distance up to 10-15 meters

(5)Self-sensitization control the night vision function by the light sensor

(6)120 degree wide range angle view

(7)Operating Voltage: 9~12VDC

(8)Operating temperature: -20~ +70 degrees , RH95% Max.

(9)Storage temperature:  -40~ +80 degrees , RH95% Max.

(10)Alloy shell, Waterproof, silver/black color selectable

(11)IP Rating: IP69K
