Night Vision Waterproof Auto Shutter Rear View Reverse Camera

Night Vision Waterproof Auto Shutter Rear View Reverse Camera

** Fast Delivery, Lead-Time 2~5 Days.

** AHD 1080P/720P & CVBS High Resolution

** IP69K Waterproof Rate

** Recommended for: Caravans, Buses, Motor Homes, Trucks, Trailers & Horse Floats

** CE, FCC, E-Marked, EMC

  • Reply within 12H
  • $ € £ Factory Price
  • Heavy Duty Rugged Design
View full details

Model No.: LC-012AT2

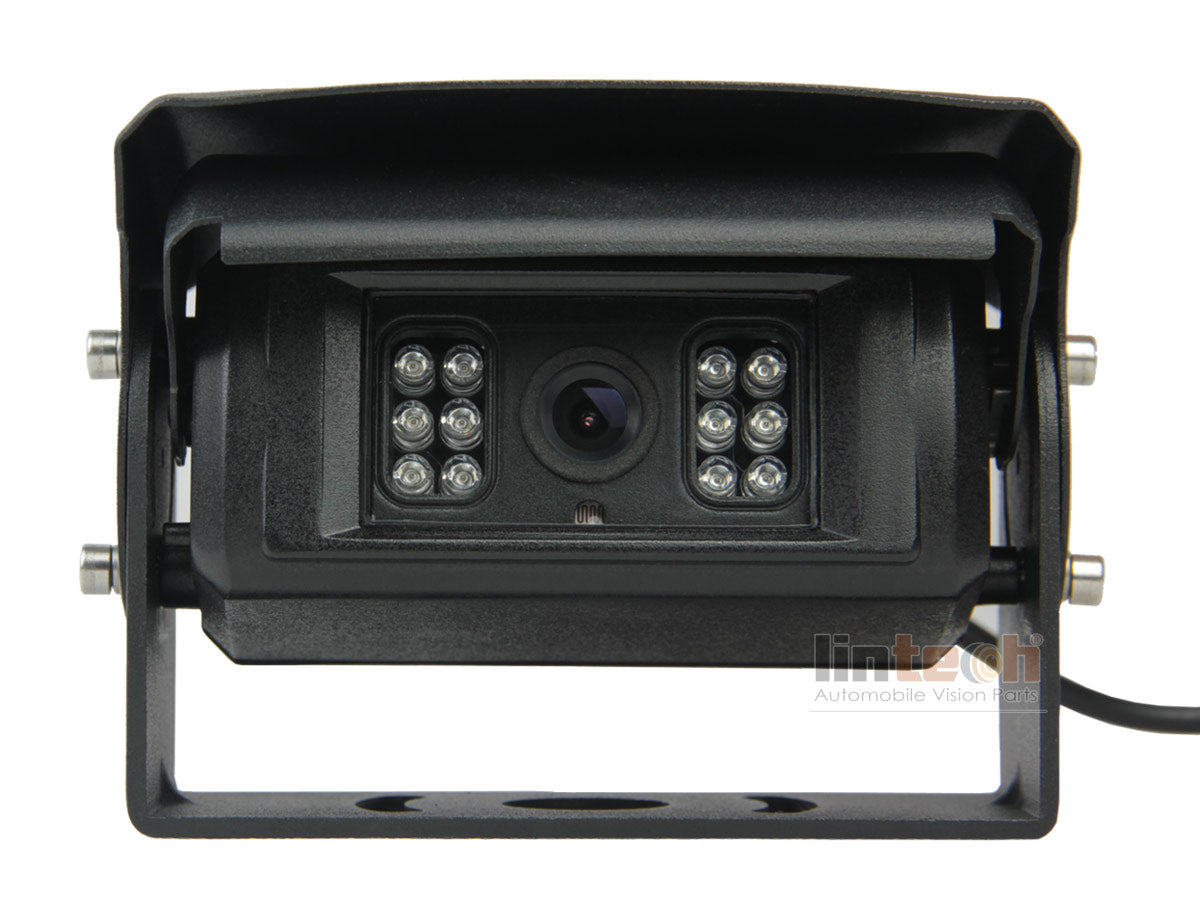

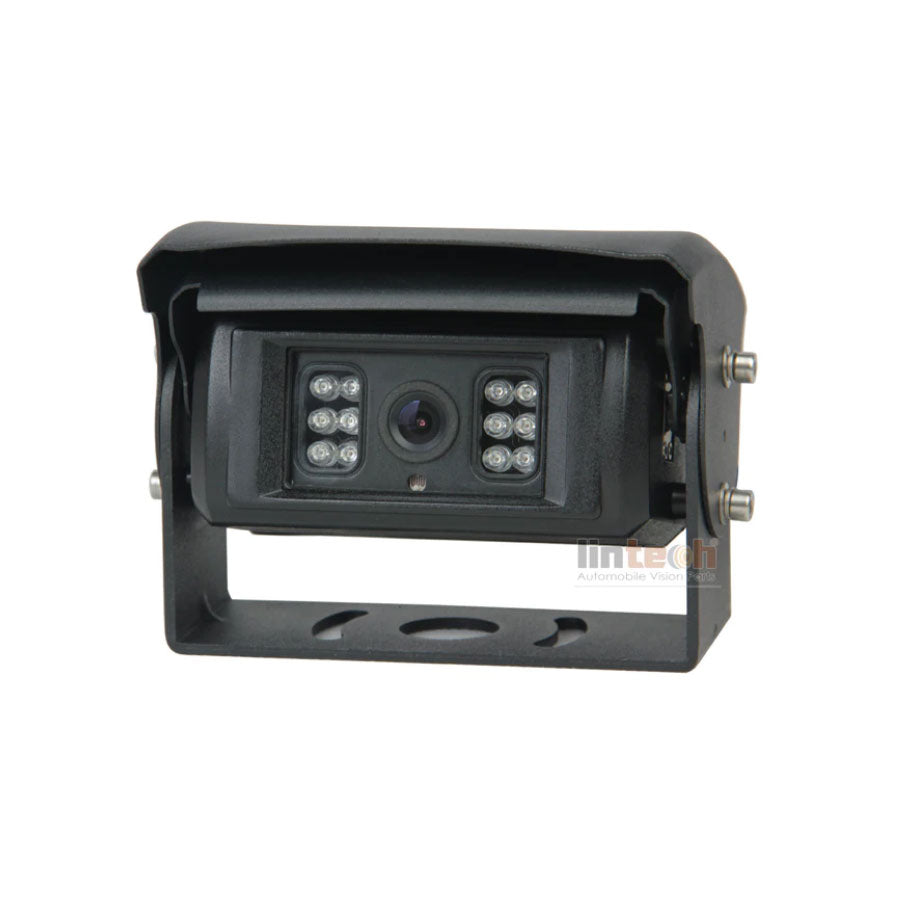

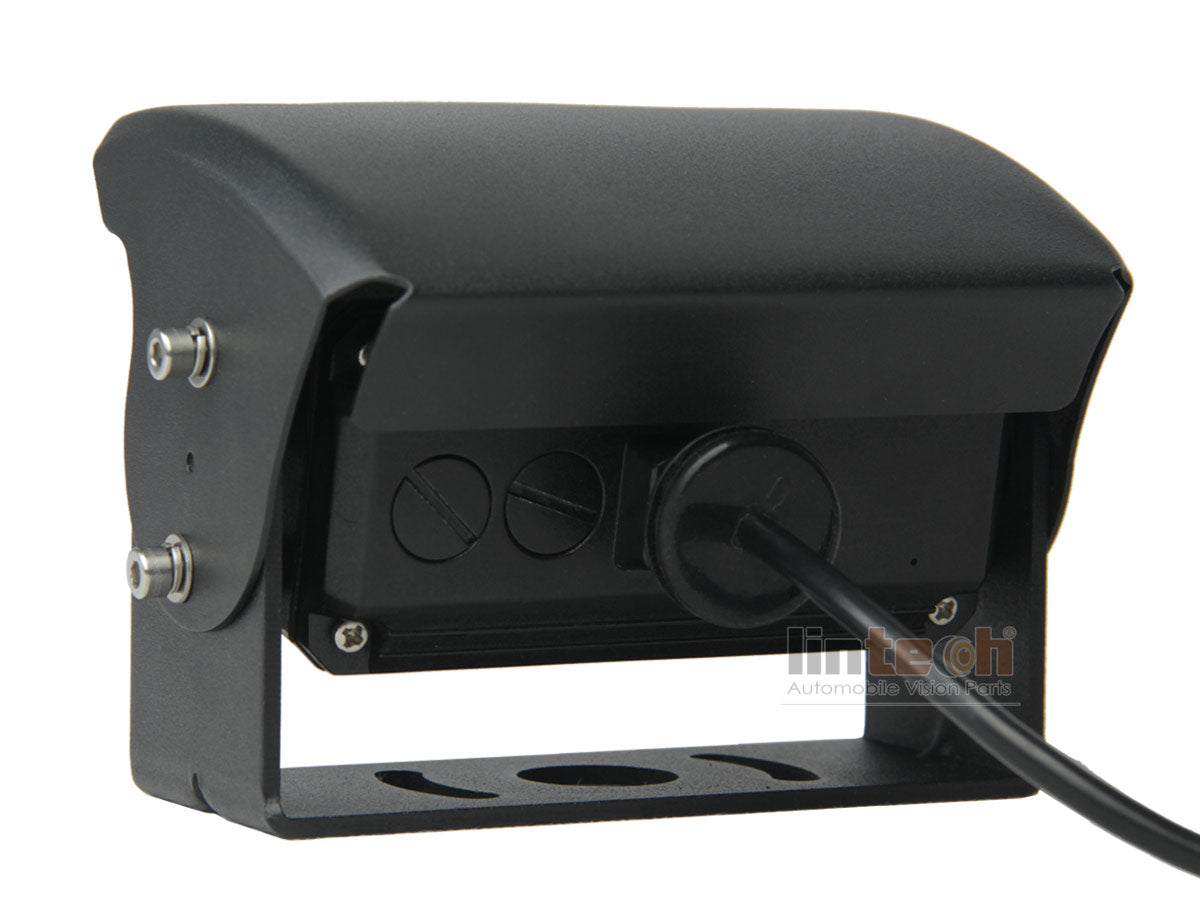

  • Heavy-duty Color Auto shutter backup camera with Infrared LED.

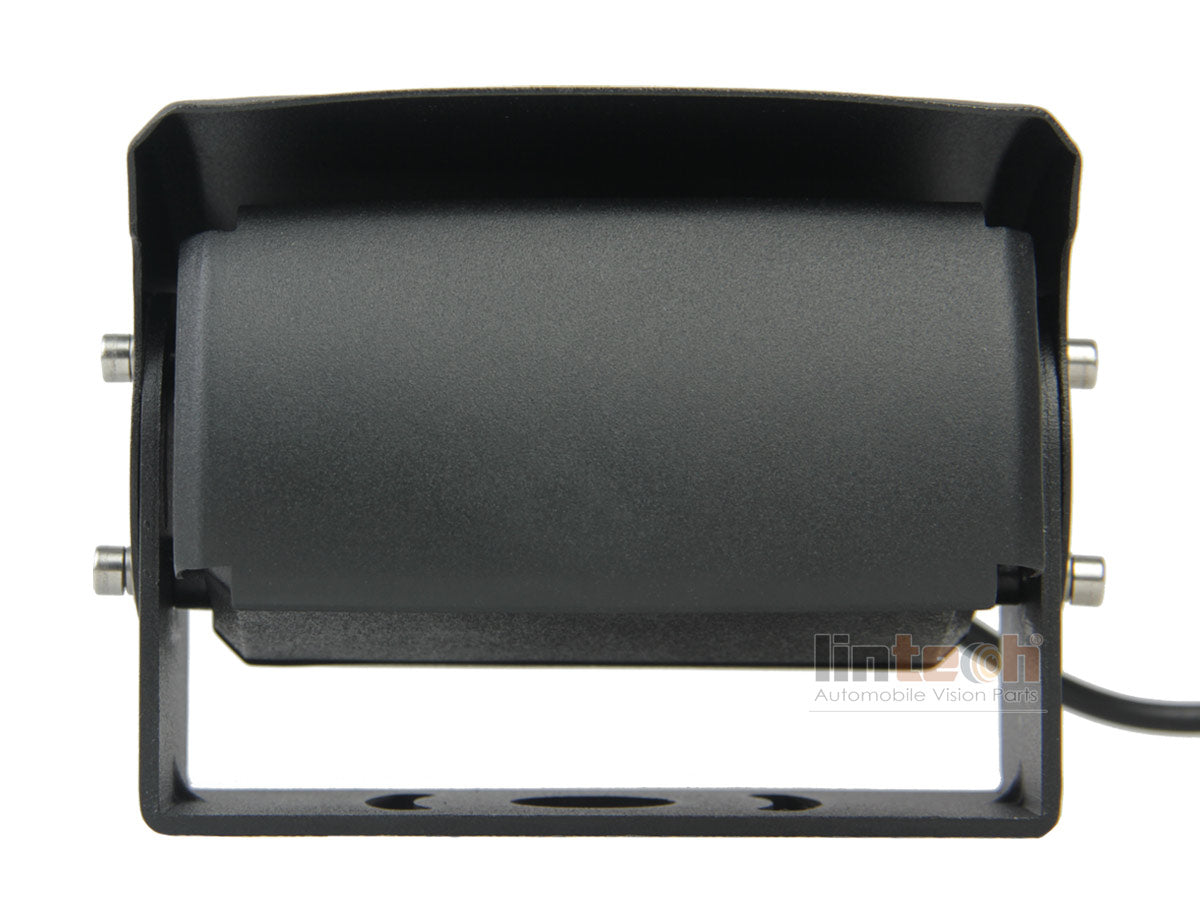

  • Automatic protective shutter closes when not in use
  • Wide field of view 120° lens
  • Waterproof rating IP68
  • Produced specifically to withstand the rigors of use in the transport industry
  • Certificates: CE/FCC/E-mark
  • Warranty: 1-3 Years

FEATURES:

The Auto shutter backup camera is an extremely well made, heavy-duty, full-color Auto shutter backup Camera suited for large commercial transport vehicles, trucks and large plant vehicles. This clever system automatically switches on, and the shutter opens when reverse gear is selected or by direction lights.

The wide camera lens has been designed specifically for the purpose of vehicle reversing, giving a good field of view to make reversing very easy and safe. This extra heavy-duty camera also has built-in Infrared LED’s for picture support in the dark AND automatic heating when below -5°C.



Subject Standard Parameter Optional Parameter
Image sensor 1/3" CMOS CCD AHD 1080P
Resolution N:510×492 pixels
P: 500×582 pixels		 N:976×494 pixels
P: 1020×508 pixels
Horizontal Resolution 700TVL 1280*1080
(1.3M Pixels)
TV System NTSC/PAL
Lens 2.5mm 2.8mm
View angle 120 degree (90 Horizotal,64 Vertical)
Power supplier 12VDC
Current consumption 200mA
Power consumption 2.4W @ 12VDC
Min illumination 0 Lux (LED ON) Night Vision
IR LED 12 pcs (Night vision distance 5m)
Waterproof rating IP68
Packing weight 0.6KG
Dimension(WxHxD) 88mm x 130mm x 86mm (MAX)
Operation temperature -20 ~ +70 C-degress
