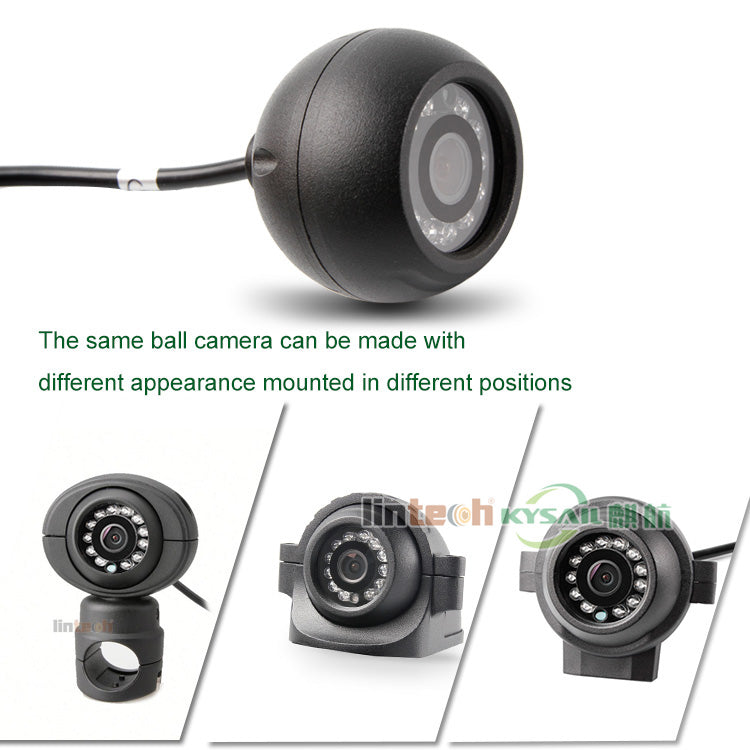

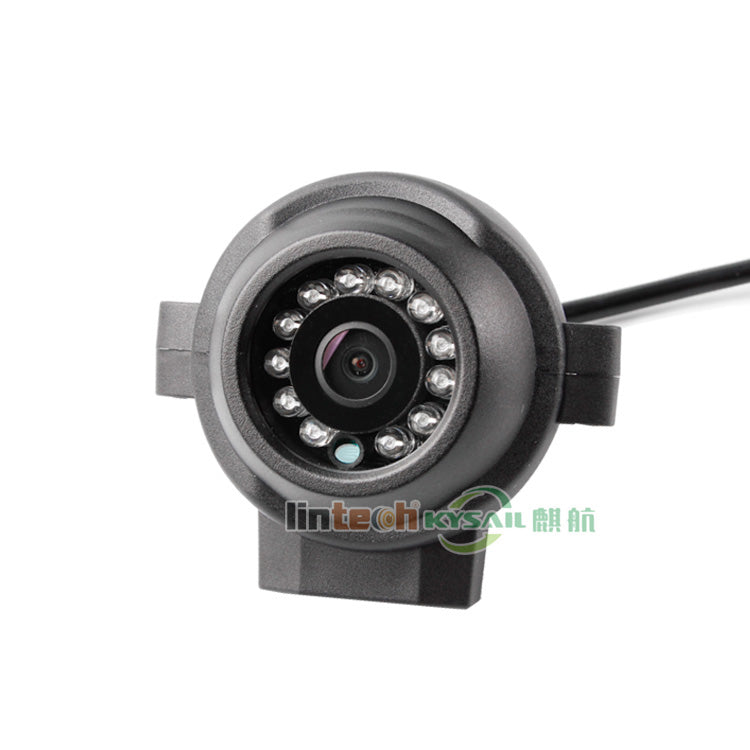

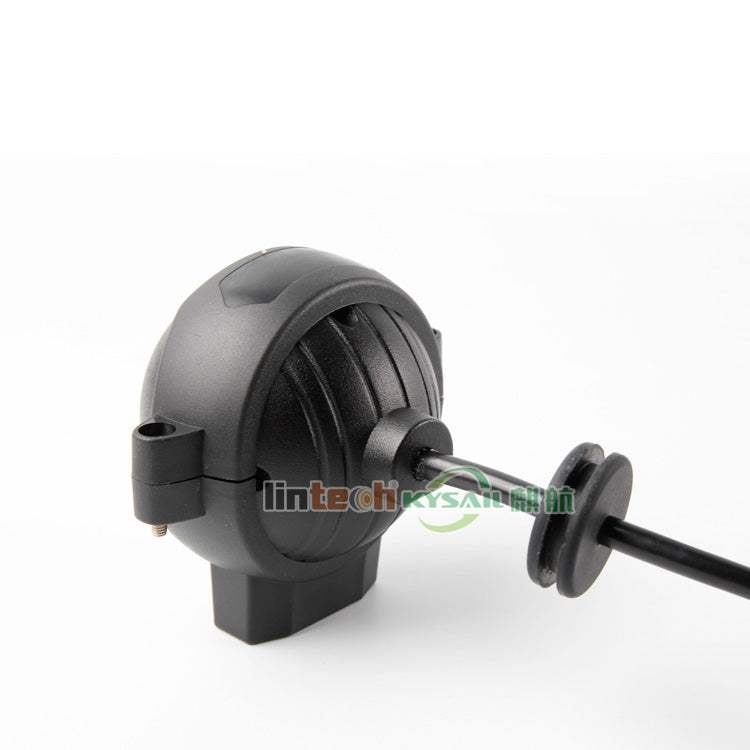

Night Vision Ball Car Camera for Universal Installation, LC-009D
Night Vision Ball Car Camera for Universal Installation, LC-009D
** Fast Delivery, Lead-Time 2~5 Days.
** AHD 1080P/720P & CVBS High Resolution
** IP69K Waterproof Rate
** Recommended for: Caravans, Buses, Motor Homes, Trucks, Trailers & Horse Floats
** CE, FCC, E-Marked, EMC
- Reply within 12H
- $ € £ Factory Price
- Heavy Duty Rugged Design
Model No.:LC-009D
- Sensor: 1/3″ CMOS CCD Sensor 700TVL
- View angle: 120°
- Night vision: 12pcs IR LED
- IP rating: IP69K (Waterproof)
- Voltage: 12V (+/- 10%)/ 1,5 Watt
- Certificates: CE/FCC/E-mark
- Warranty: 1-3 Years
Subject Standard Parameter Optional Parameter Optional Parameter Image sensor 1/3" CMOS 1/3” CMOS AR0130 NVP2441H + IMX323 CMOS Resolution N:510×492 pixels
P: 500×582 pixels1280*960
(1.2M Pixels)1280*1080
(1.3M Pixels)Horizontal Resolution 700TVL 960P 1080P TV System NTSC/PAL Lens 2.5mm 2.8mm 2.8mm View angle 120 degree (90 Horizotal,75 Vertical) Horizontal 90 , Vertical 50, Diagonal 102 Horizontal 105 , Vertical 53, Diagonal 122 Power supplier 12VDC Current consumption 150mA Power consumption 1.8W @ 12VDC Min illumination 0 Lux (LED ON) Night Vision IR LED 12 pcs (Night vision distance 5m) Waterproof rating IP69K Packing weight 0.4KG Operation temperature -20 ~ +70 C-degress
