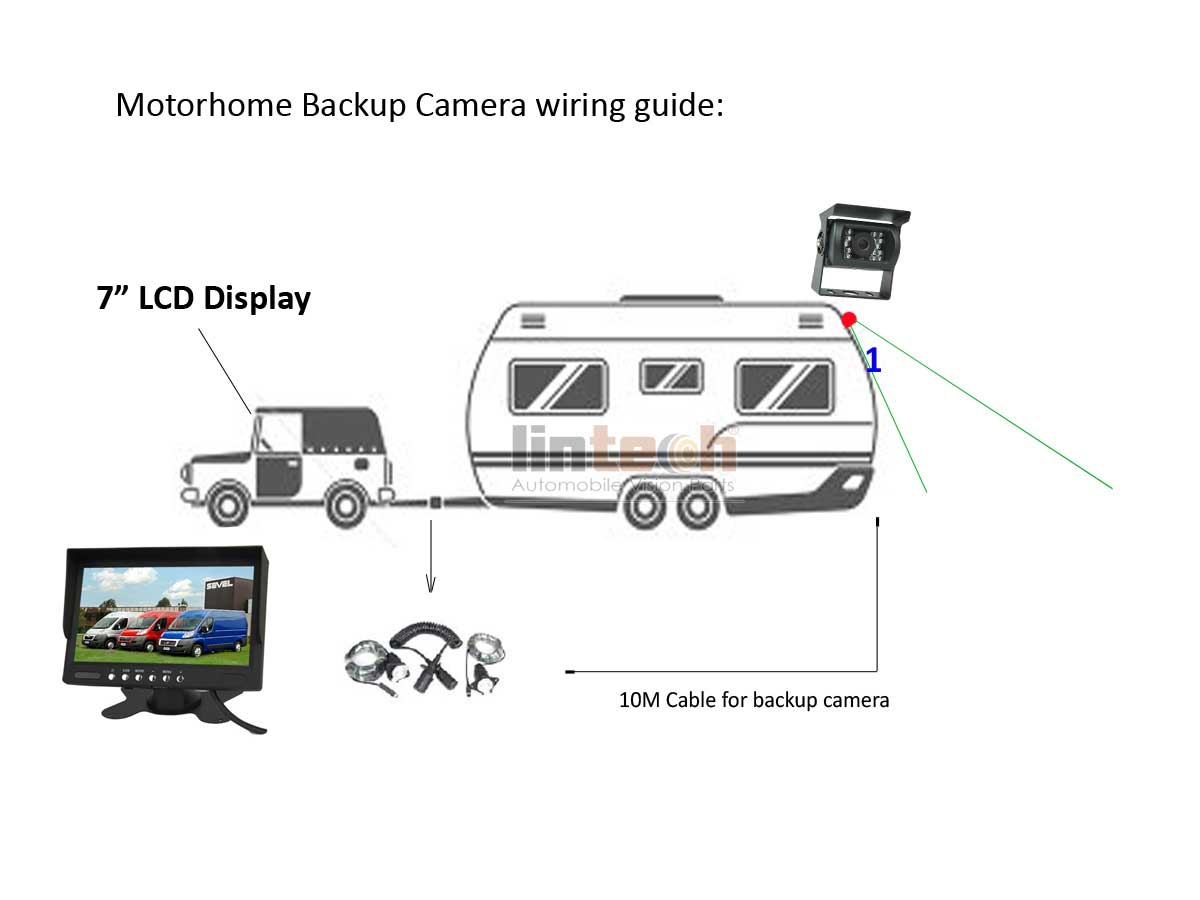

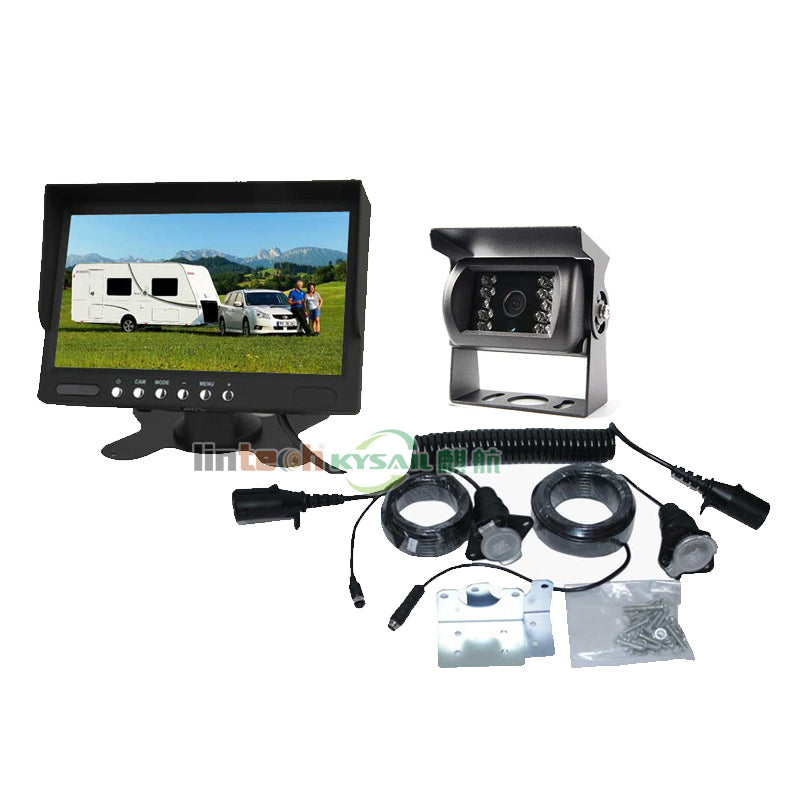

Motorhome Trailer RV Backup Camera System, LRV-01

Monitor (LM-070A-5) Features:

• 2CHs video input
• Display Resolution:800 x R.G.B x 480(Digital)
• Power Voltage:12~24VDC/ 300m
• Camera view angle:120 degree
• Camera waterproof rate:IP68
• Camera for motorhome side view and rear view
• Trailer support 1 camera to connection

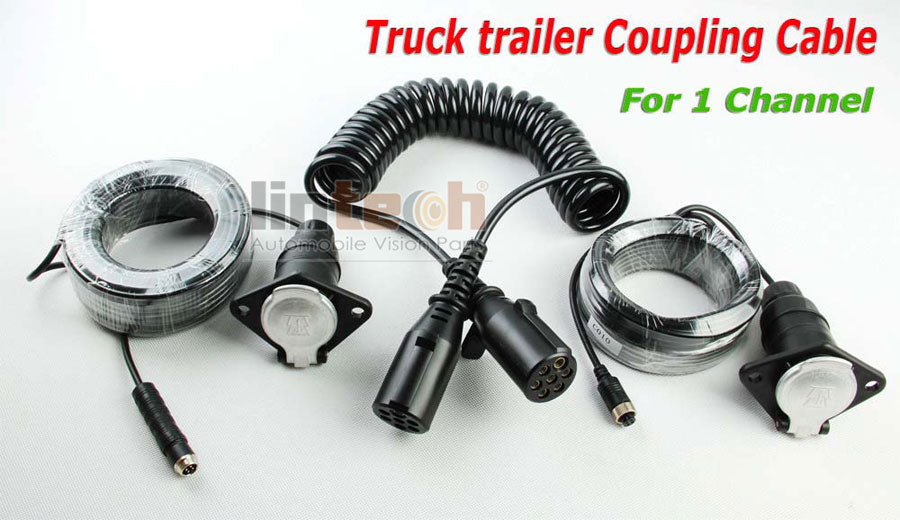

This kind of trailer cable set for 1 camera.
Single cable carries power, ground, video and audio wires. Designed for use on all types rearview cameras and rearview camera systems of motor vehicles.

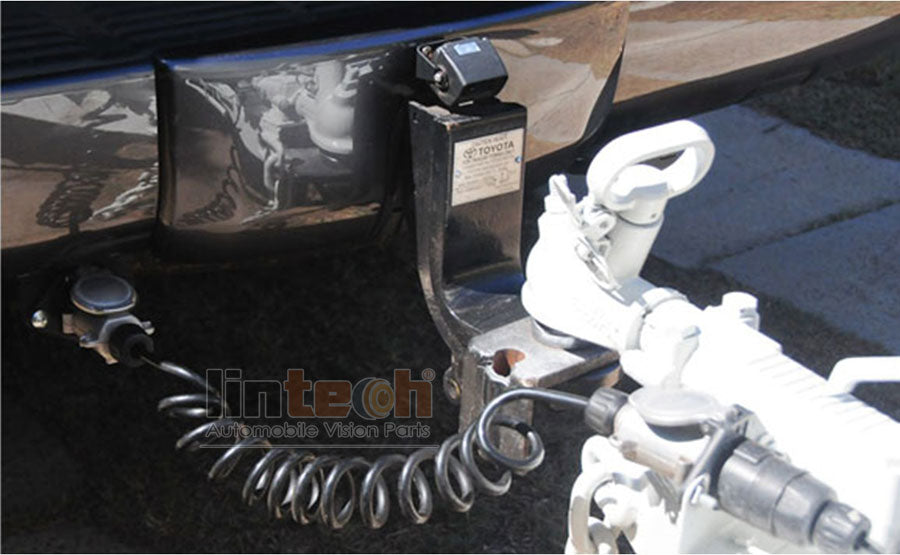

— Spiral cable stores separately when not in use.
— Simple and easy plug and play installation.
— Highly recommended for Heavy Duty Trucks, Tractors, RVs, Trailers.

Specification of Monitor:

Model No.: LM-070A-5

–Screen size: 7 inches color LCD monitor
–Brightness: 400cd/m2
–Contrast: 400:1 / 500:1
–Viewing angle: U: 50/ D: 60, R/L: 70 Degree
–Resolution: 800 x R.G.B x480 dots
–Video input: 2CHs (Single channel display).
–Power supply:12~24VDC
–Outer dimension: 180mm x 121mm x 23mm
–Features: Standard Bracket, With Sun Shade

Specification of Cameras LC-018C:

–4Pin DIN waterproof screw on connector
–Standard rear view camera
–The automatic day/night sensor and infrared LEDs to provide clear image in dull condition
(1)1/3'' Color CCD sensor
(2)TV system : PAL/NTSC
(3)Resolution: 700 TV lines
(4)With 18 IR LED light ,night vision distance up to 10-15 meters
(5)Self-sensitization control the night vision function by the light sensor
(6)120 degree wide range angle view
(7)Operating Voltage: 9~12VDC
(8)Operating temperature: -20~ +70 degrees , RH95% Max.
(9)Storage temperature: -40~ +80 degrees , RH95% Max.
(10)Alloy shell, Waterproof, silver/black color selectable
(11)IP Rating: IP68
