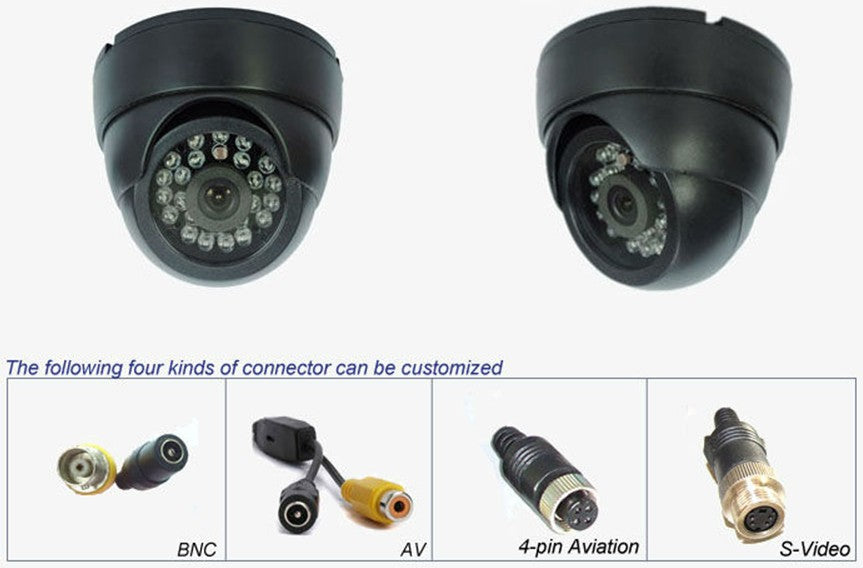

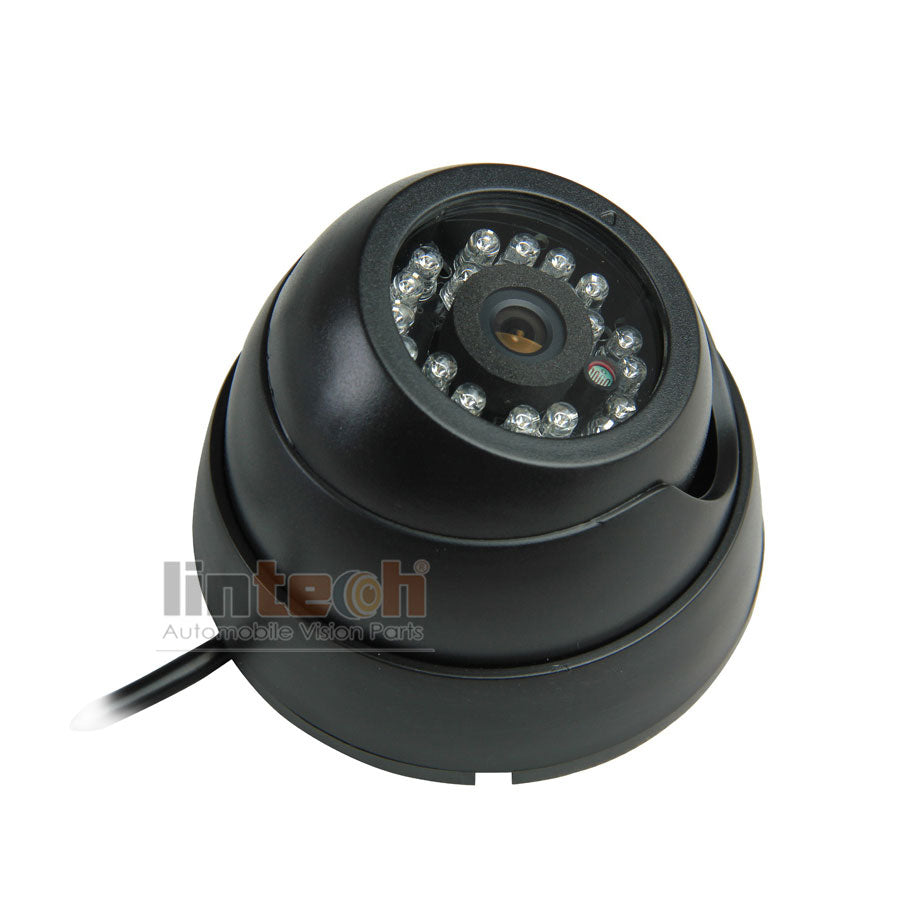

Color CCD Sensor Dome Camera for Bus Inside Security System, LC-024A
Color CCD Sensor Dome Camera for Bus Inside Security System, LC-024A
** Fast Delivery, Lead-Time 2~5 Days.
** AHD 1080P/720P & CVBS High Resolution
** IP69K Waterproof Rate
** Recommended for: Caravans, Buses, Motor Homes, Trucks, Trailers & Horse Floats
** CE, FCC, E-Marked, EMC
- Reply within 12H
- $ € £ Factory Price
- Heavy Duty Rugged Design
Model No.: LC-024A

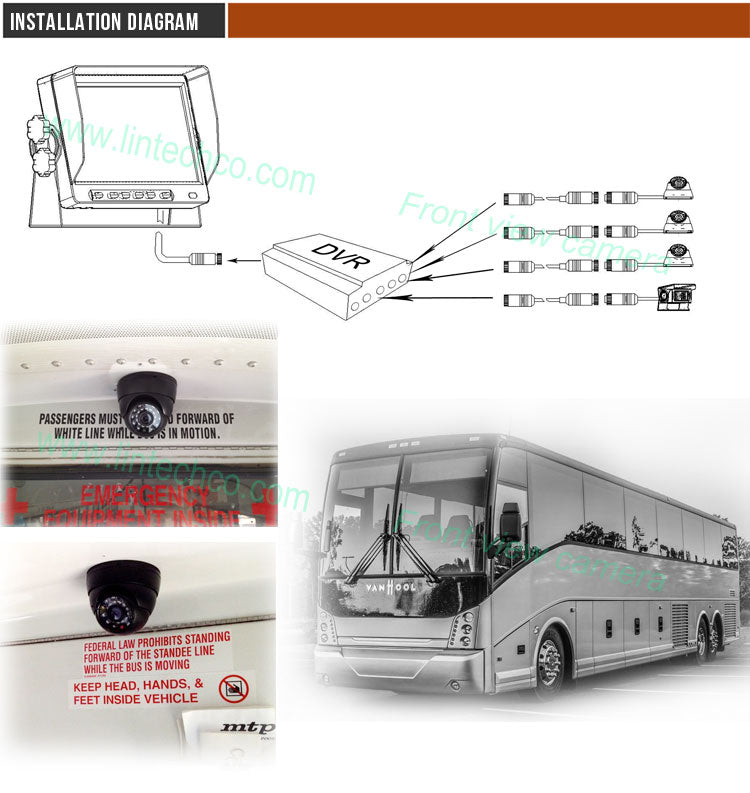

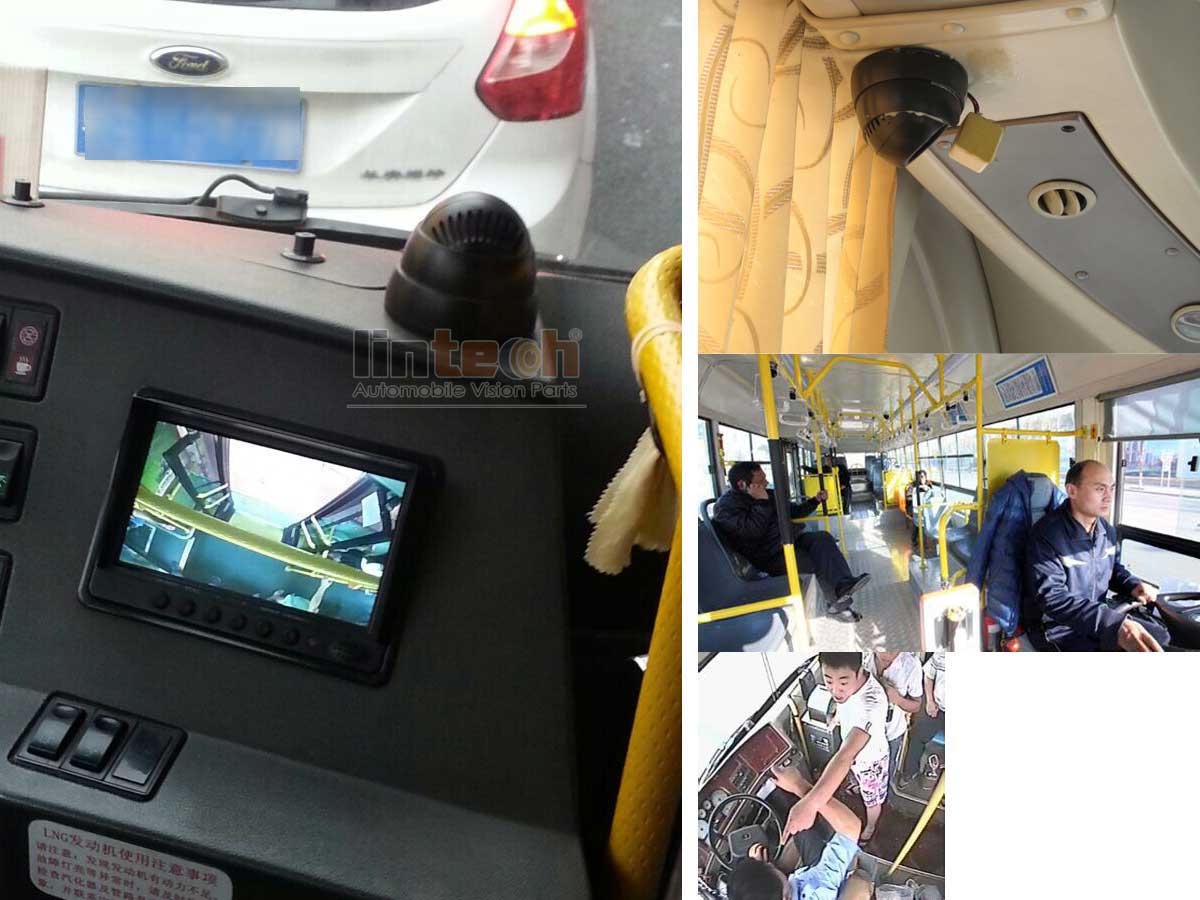

- For inside bus/cab/house surveillance
- Sensor: 1/3" CMOS Sensor 700TVL
- Lens: 2.5 mm
- View angle: 120°
- IR LED: 24pcs
- Night vision distance: 7-10 m
- Waterproof IP rating: IP30(plastic house)/IP67(plastic house)
- Certificates: CE/FCC/E-mark
- Warranty: 1-3 Years
FEATURES:
-Plastic/Aluminum house available (different cost)
-With 24pcs IR LED, good performance even at night
-Easy adjust view angle
-Easy installed
-Different sensor chip and lens matching optional for image quality and cost balance
| Subject | Standard Parameter | Optional Parameter |
|---|---|---|
| Image sensor | 1/3" CMOS | AHD 1080P |
| Resolution | N:510×492 pixels P: 500×582 pixels |
NVP2441H + IMX323 CMO |
| Horizontal Resolution | 700TVL |
1280*1080 (1.3M Pixels) |
| TV System | NTSC/PAL | |
| Lens | 2.5mm | 2.8mm |
| View angle | 120 degree (90 Horizotal,75 Vertical) | |
| Power supplier | 12VDC | |
| Current consumption | 180mA | 180mA |
| Power consumption | 2.1W @ 12VDC | 2.1W @ 12VDC |
| Min illumination | 0 Lux (LED ON) Night Vision | |
| IR LED | 24 pcs (Night vision distance 7m) |
|
| Waterproof rating | IP30/IP67 | |
| Packing weight | 0.5KG | |
| Dimension(WxHxD) | 92mm x 72mm x 92mm (MAX) | |
| Operation temperature | -20 ~ +70 C-degress |
