About this Radar BSD System
This product can give early warning to dangerous targets in the left and right rear of motorcycle.
1. Wide field of view: 150° horizontal detecting range, helps rider to get more time to react and respond to emergencies.
2. High precision: This 77Ghz Radar achieves super-good performance in range resolution, velocity measurement, and accuracy.
3. Durable and flexible: Aluminum alloy case and high technology offer a stable performance against harsh environments such as temperatures from -40℃ to +70℃.
4. Up to 64 targets: Detecting 64 targets simultaneously in a 50m maximum detecting range.
5. Easy to Install: Small and Compact sizes make the product quite easy to install within 1 hour.
6. Waterproof Rating IP67: superior performance against water, dust and excellent performance in high& low-temperature environments.
-- Dust & waterproof compliant: IP67
-- Distance resolution: 0.2 m
-- Ranging accuracy Better than: 0.1 m.
-- Detection range: 0-50 m
-- Horizontal angle range: 150°
-- Pitch angle range: ±10°
-- Velocity measurement accuracy: 0.1m/s
-- Input Voltage Range: 9V – 16V, 12V (Typical)
-- Current Consumption: <200mA ± @12V (2.5W)
-- Operating temperature: -40°C ~ +80°C
Weight: n.w.: 980 g./ 2.16 lbs. (pair), (total package)

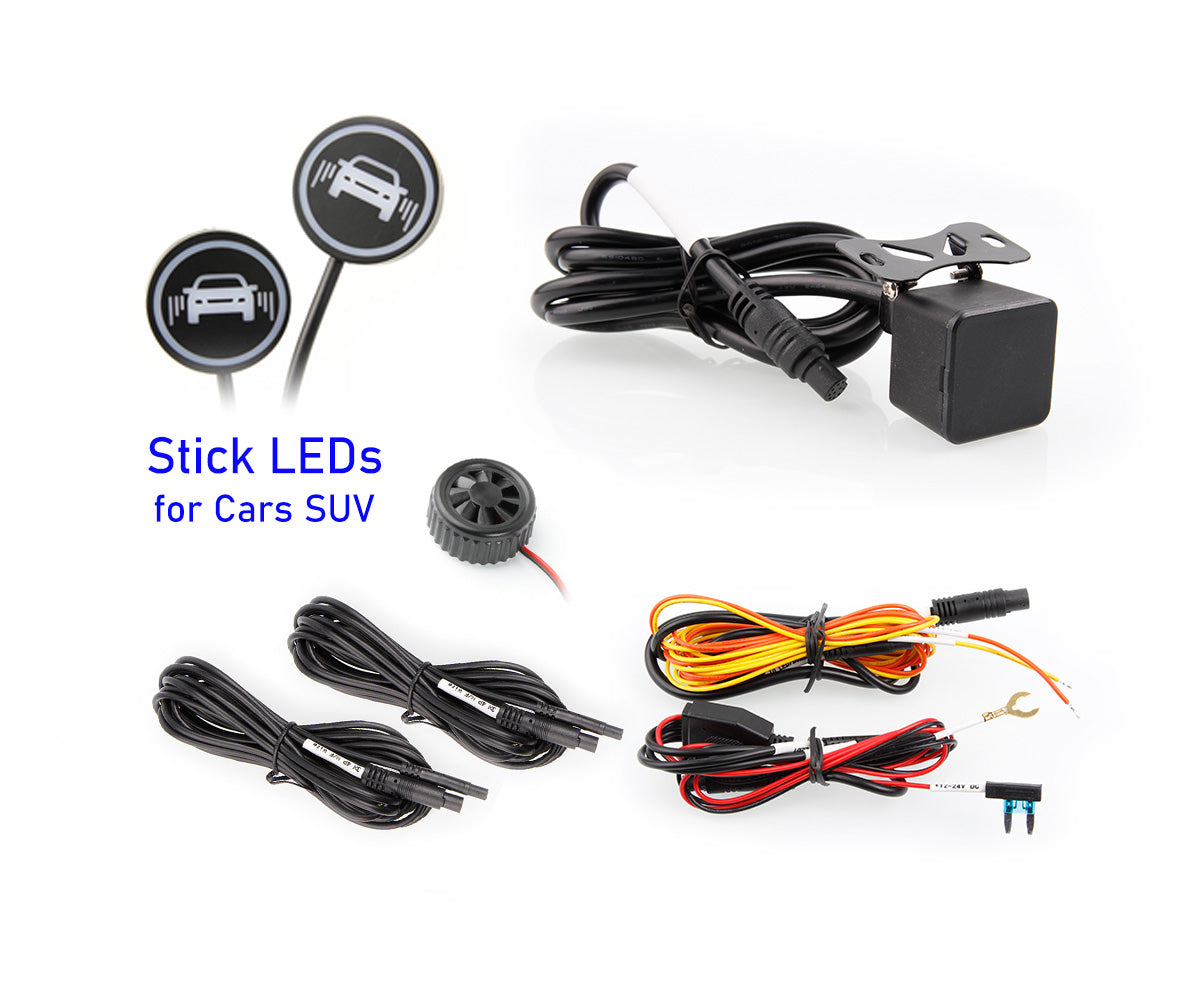

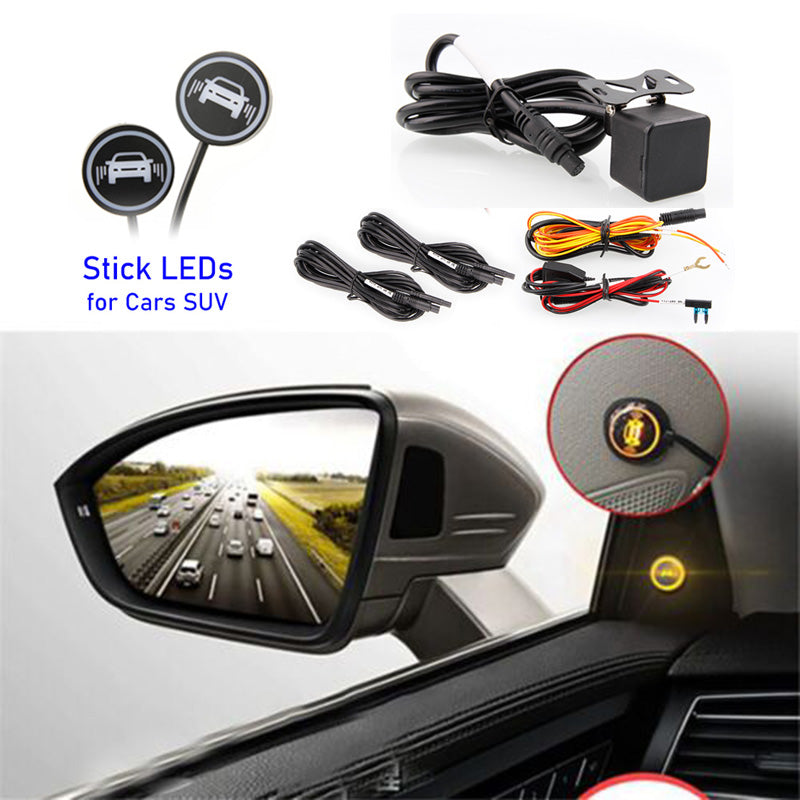

Package:

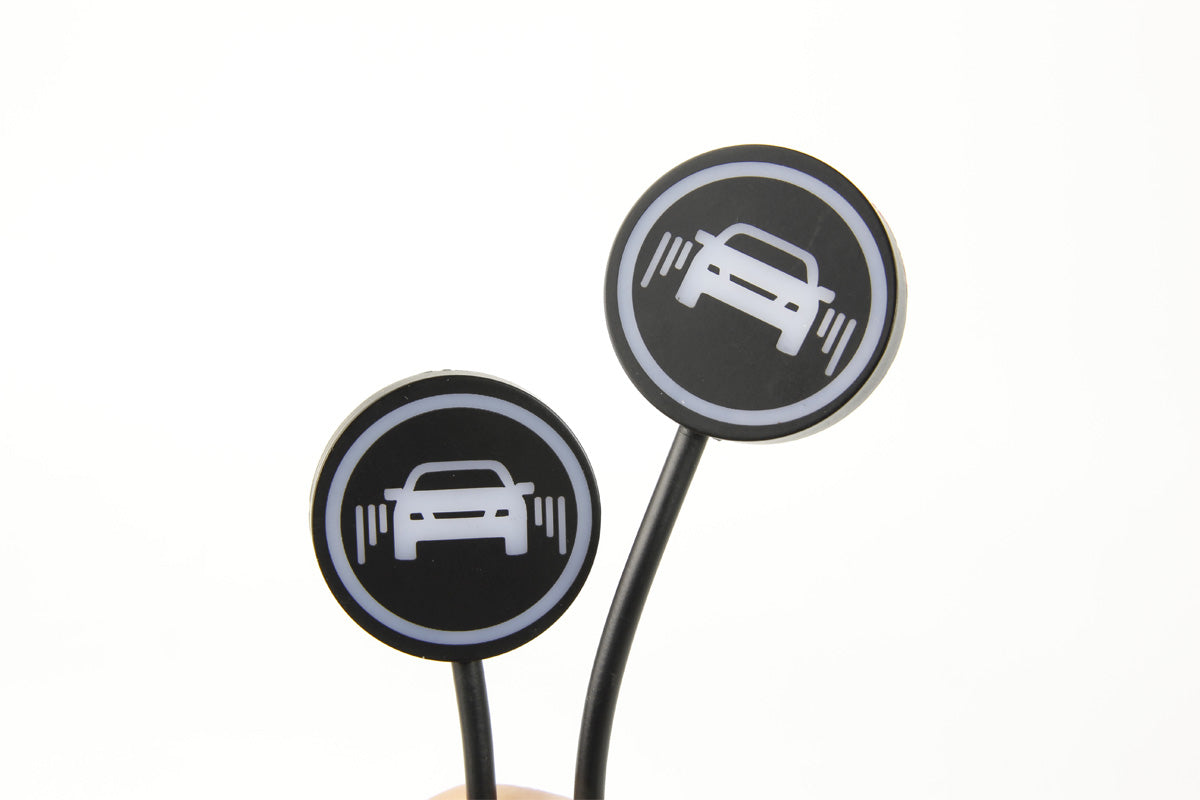

** A pair of LED lights (Stick Type Thin LED),
** Extension cable for LED 1.8M x 2pcs,
** Power cable unit x1,
** Radar unit x 1
Other Optional bracket:
-- Handlebar brackets x 2
-- Mirror base brackets x 2
How Does Kysail Car BSD Radar System Work?

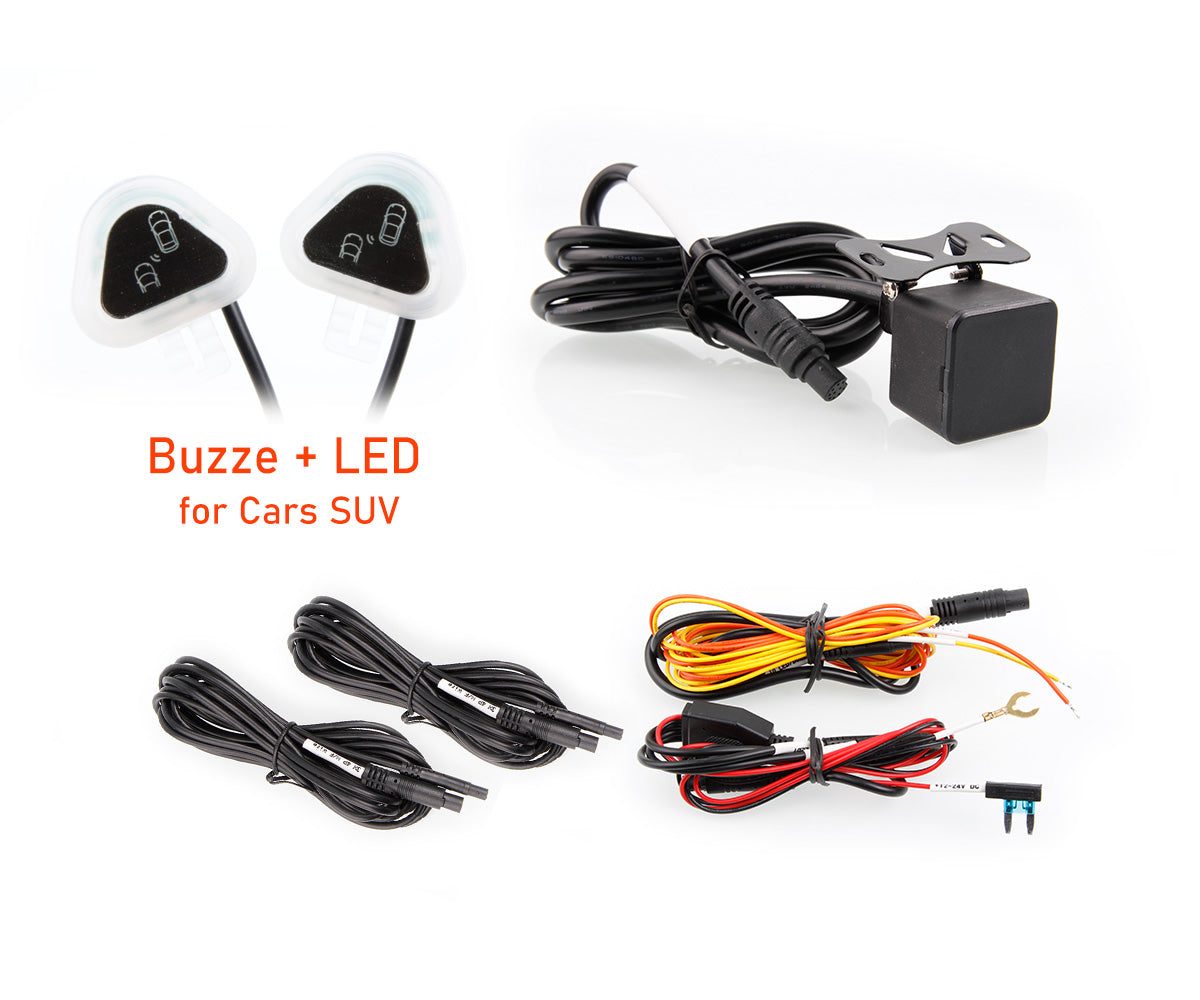

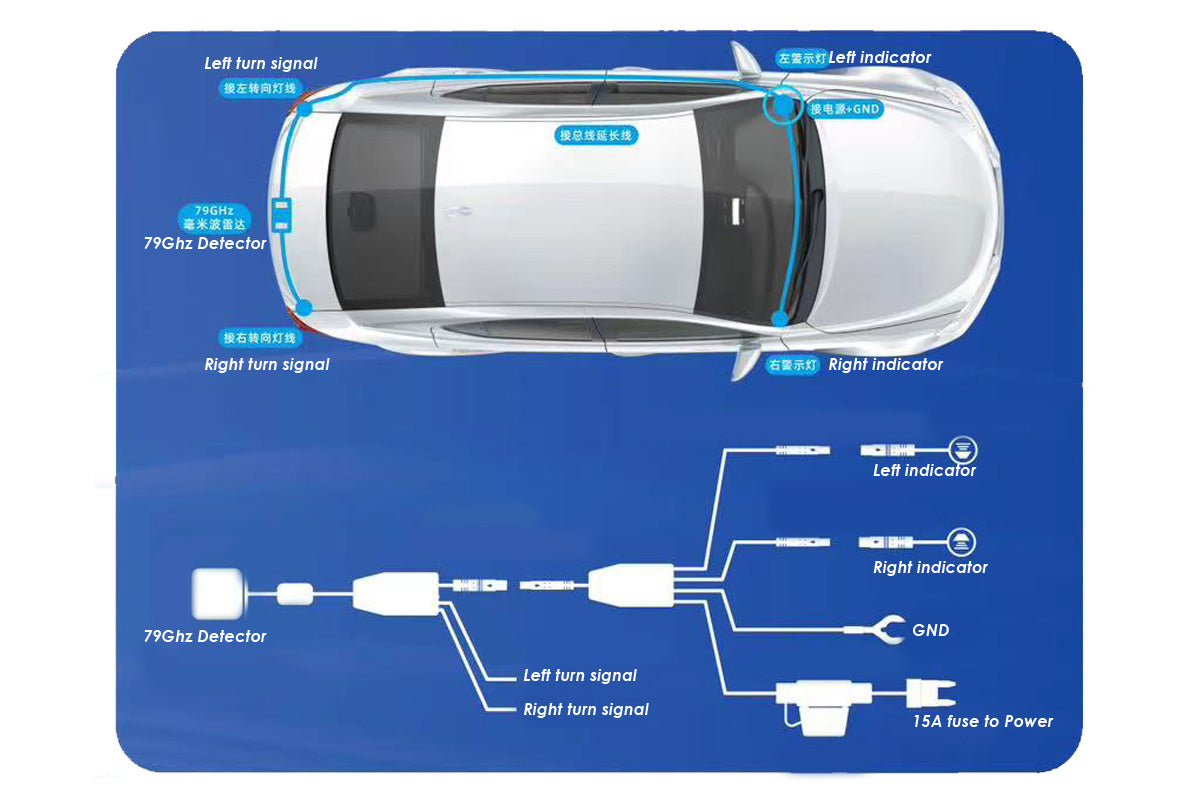

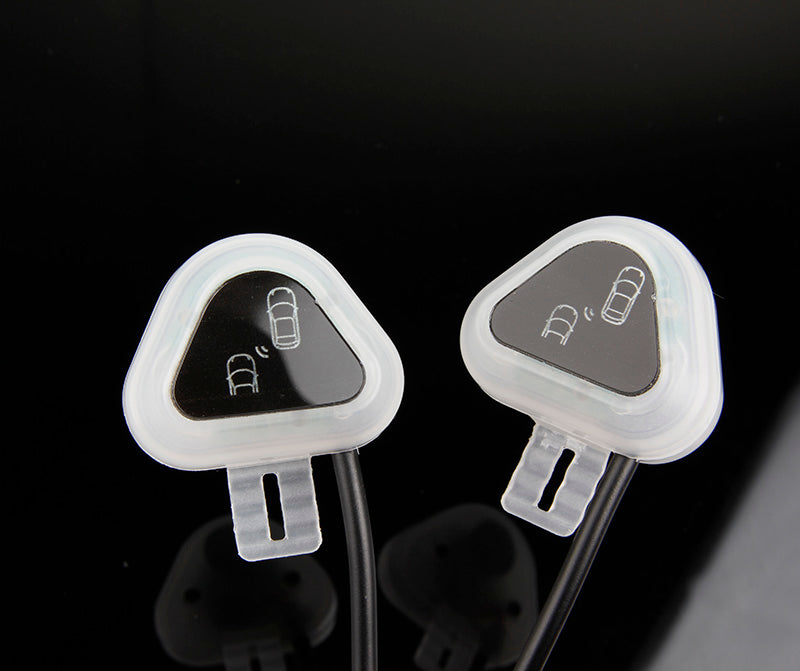

This system kit include 1 x 77Ghz millimeter wave radar, 2 x indicator LEDs (built-in Buzzer), or a single buzzer, and connecting harness.
All these components work collectively for the proper functioning of the system.
Operation Principle:
The system performs two main functions. One is detecting the target object, the other is warning driver. The millimeter wave radar accurately detects the objects, then warning lights and buzzer collectively warn the driver about the risk at the same time.
77Ghz Radar Continuously send & receive the wave signals, it is up to the car BSD system to judge whether the object is a threat to the car or not.
For practical judgment, it accurately measures the target car’s speed, angle, and relative displacement. Once the system marks the target as a potential risk, it will issue the first or second-level alarm to warn the driver.
1st level alarm: The warning light will stay on without buzzer involvement;
2nd level alarm: The warning light flashes, and the buzzer sounds.
77GHz Radar can detect 64 objects simultaneously within a 50-meter range. It is the most efficient and accurate car blind spot detection system.

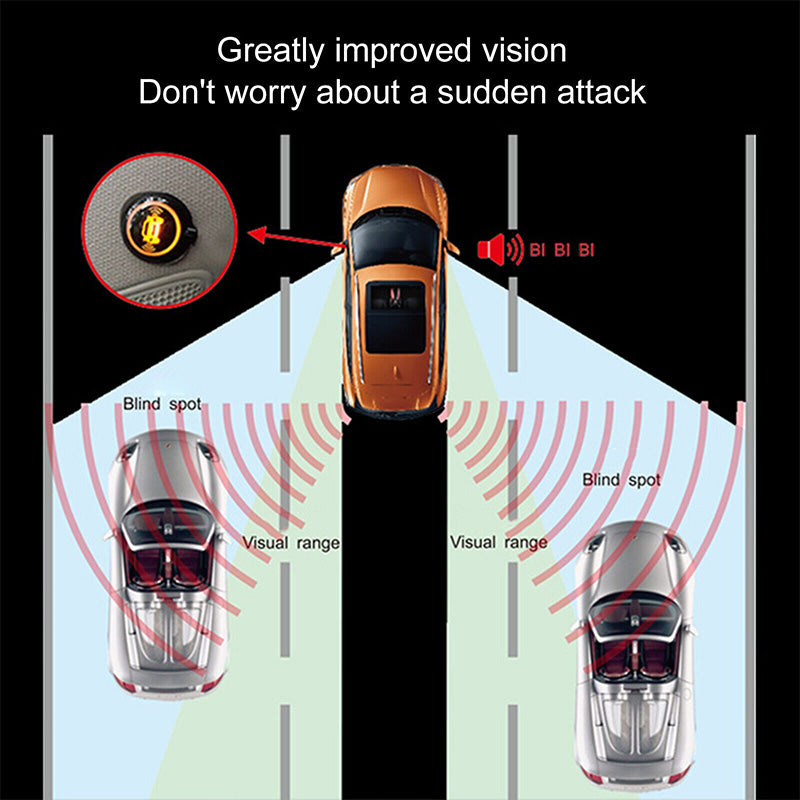

Blind Spot Detection (BSD):
- Car Speed：V≥10Km/h
- Widthwise Detecting area：1.5m≤X≤4.4m，-4.4m≤X≤-1.5m
-
longitudinal Detecting area：0 m≤Y≤6M (or 10M =30Ft)
- Warning strategy: Moving target in alarm area
1st level alarm: The corresponding indicating light will stay ON to warn the driver (without buzzer involvement); Once the object car leaves detecting area, the system will cancel the alarm.
2nd level alarm: If the driver switches on the turn signal lamp while a car is in the detection area, the system issues 2nd Level alarm: The warning light flashes, and the buzzer sounds.
Lane Change Assist – (LCA)
- Widthwise Detecting area：1.5m≤X≤4.4m，-4.4m≤X≤-1.5m
-
longitudinal Detecting area：0 m~50M (164Ft)
- Warning strategy: Time To Collision (TTC) ≤ 3s.
This system helps the driver in active lane changing.
It warns the driver early about the object in the adjacent lane. In LCA parallel auxiliary feature, the system adopts an early warning strategy. So, it alerts the driver when the approach time of the vehicle is ≤ 3.0 seconds.
1st level alarm: The corresponding indicating light will stay ON to warn the driver (without buzzer involvement); Once the object car leaves detecting area, the system will cancel the alarm.
2nd level alarm: If the driver switches on the turn signal lamp while a car is in the detection area, the corresponding warning light flashes, and the buzzer sounds.
Much easier than old 24Ghz dual radar version!
3 Quick Installation position recommend:

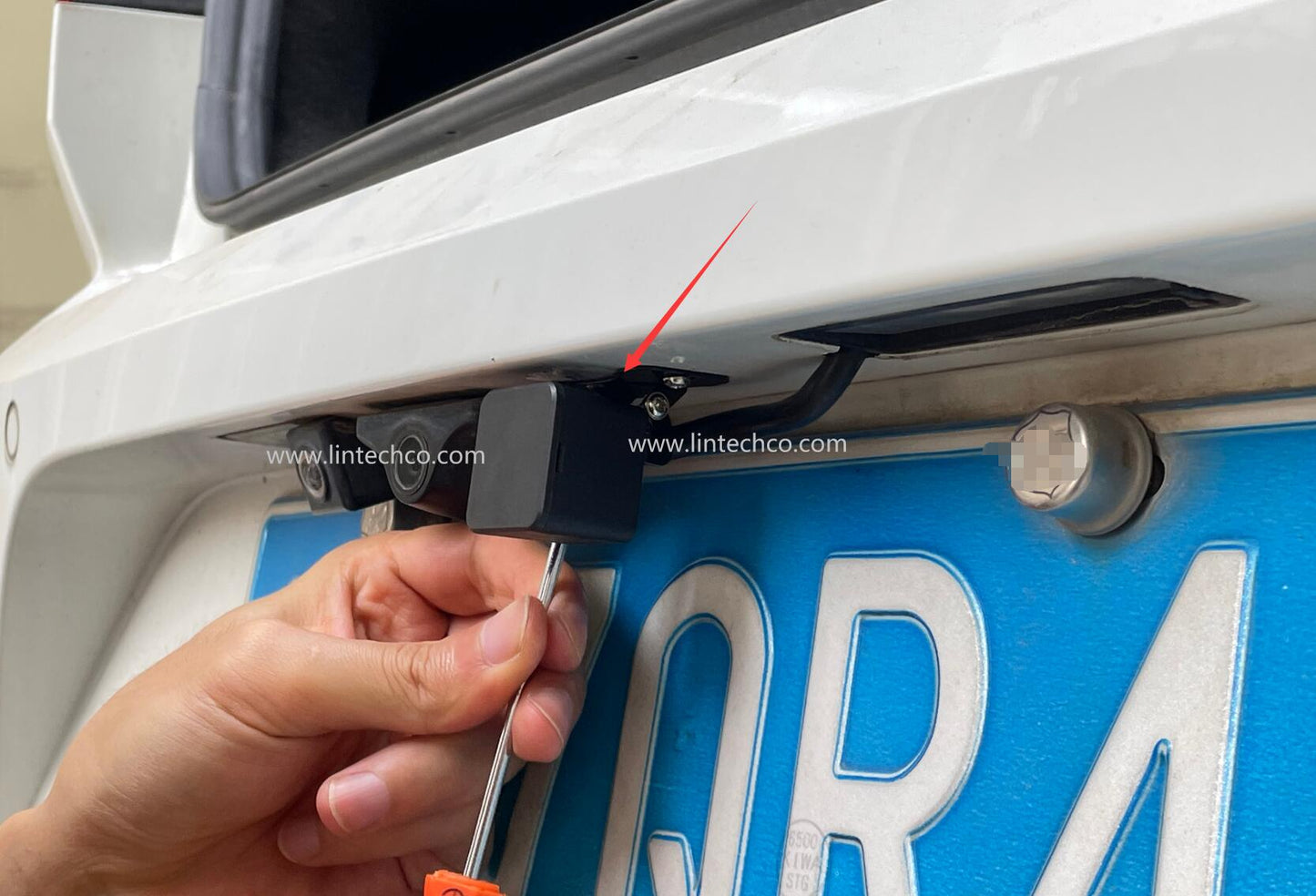

- Position A: install on license plate
- Position B: install inside of Rear bumper

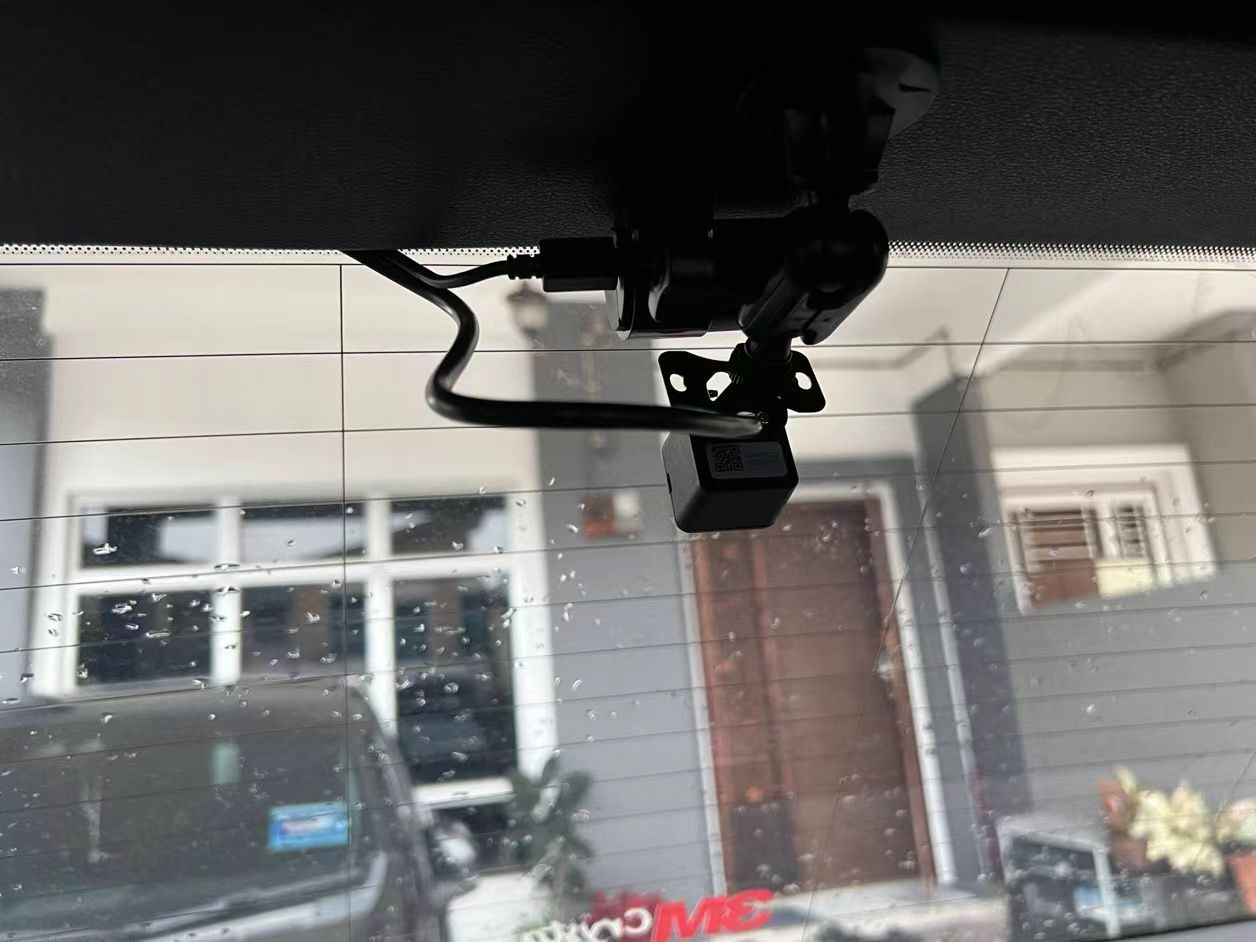

- Position C: install on Rear Window for SUV / Hatch-back ( in car )
How easy to install the Radar System on Car?
Let's see the video guide below:
For sedan cars install on license plate:
For All kinds of cars install behind the Rear bumper:
For SUV & Hatch-back cars install on Rear window:
If any question please contact us~
