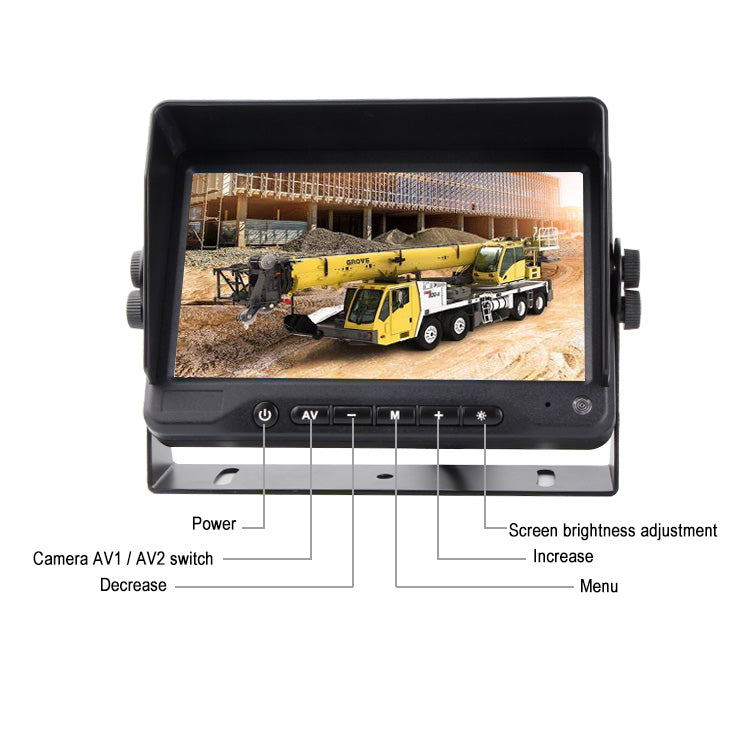

7 Inch TFT LCD STAND ON DASH MONITOR

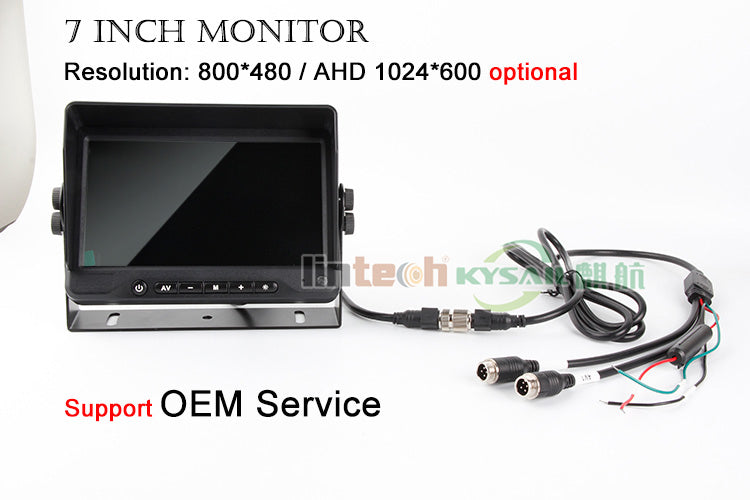

This is the latest version of the LM-070F2 which has an 800x480 pixel and AHD 1024x600 pixel digital color panel.
It runs off 12v to 32v automatically adjusting between the two. It uses the locking 4 pin connectors that provide power back to the cameras simplifying the wiring needed to just a positive and negative supply off the ignition.
It has 2 or 4 AV channels and can be wired in to automatically switch to AV2 on engaging reverse.

Monitor (LM-070F2) Features:

• 2CHs video input(4CHs optional)
• Display Resolution:800 x R.G.B x 480(Digital) / AHD 1024*600  Optional
• With parking guide line
• Power Voltage:12~32VDC/ 300m
• Multi-languages of display available:English, French, Chinese, Russian,Italian, Spanish, Portuguese, German
• Uses 4 pin connectors

• Keyboard with background lights for Night-operation
