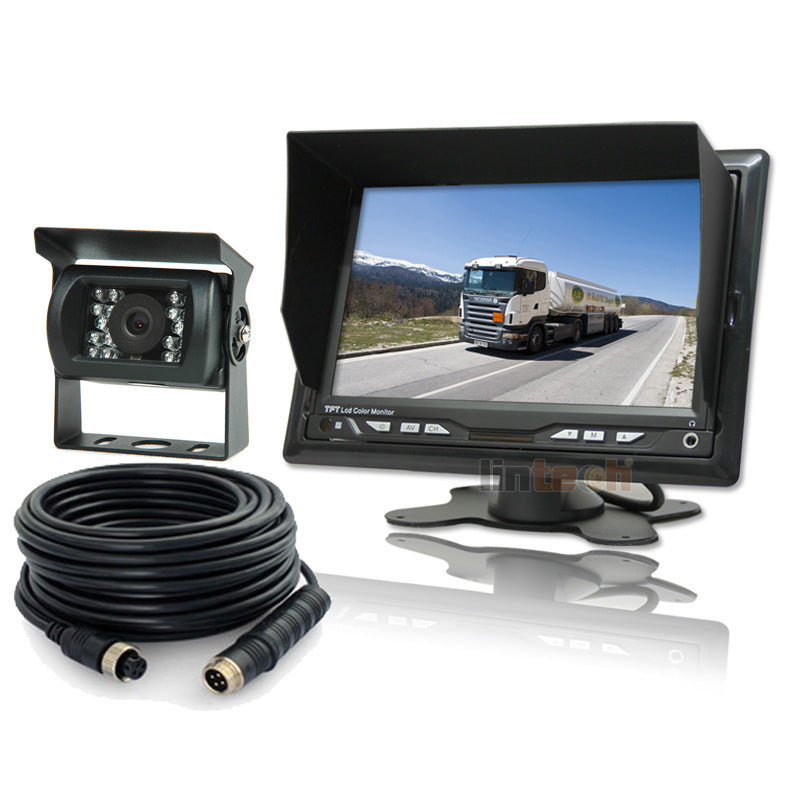

Truck Backup camera system kit
Truck Backup camera system kit
Benefits:
** Eliminate your reverse blind spots
** IP69K Waterproof Rear view Camera
** Special Design for Heavy duty vehicles
- Reply within 24H
- Lead-time 5~15 Days
- Heavy Duty Rugged Design

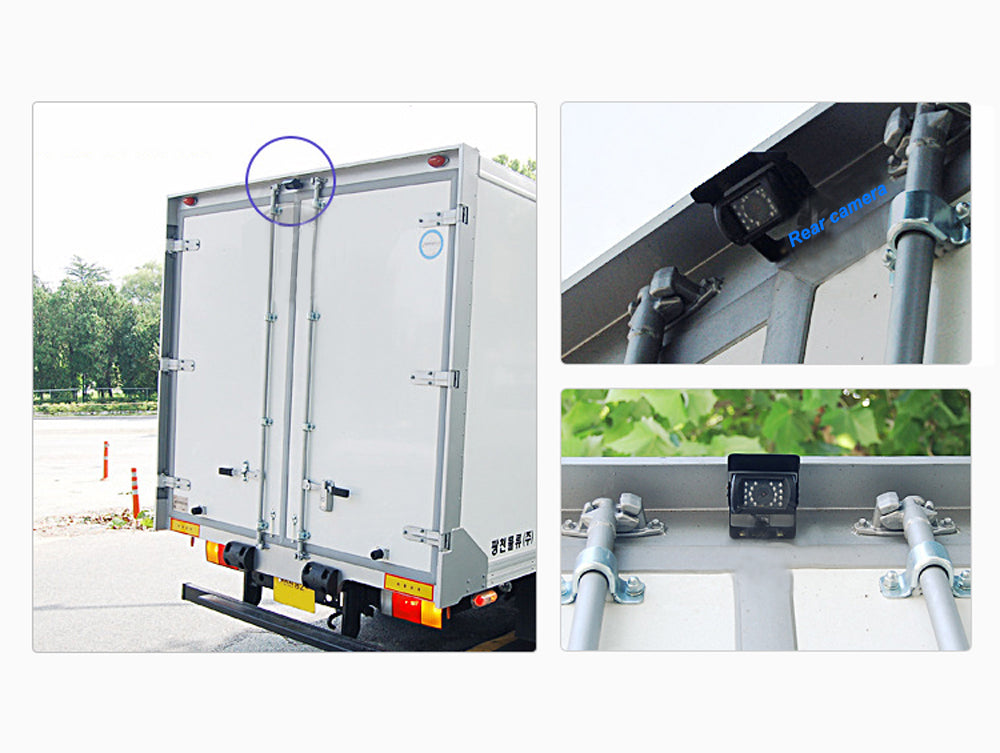

IP69K Rear View Camera
Night Vision Enhance for Reversing aid
High Resolution CMOS color infrared camera LC-018A delivers excellent picture quality even in low light condition.
IP69K waterproof no fear of high pressure water rinse.

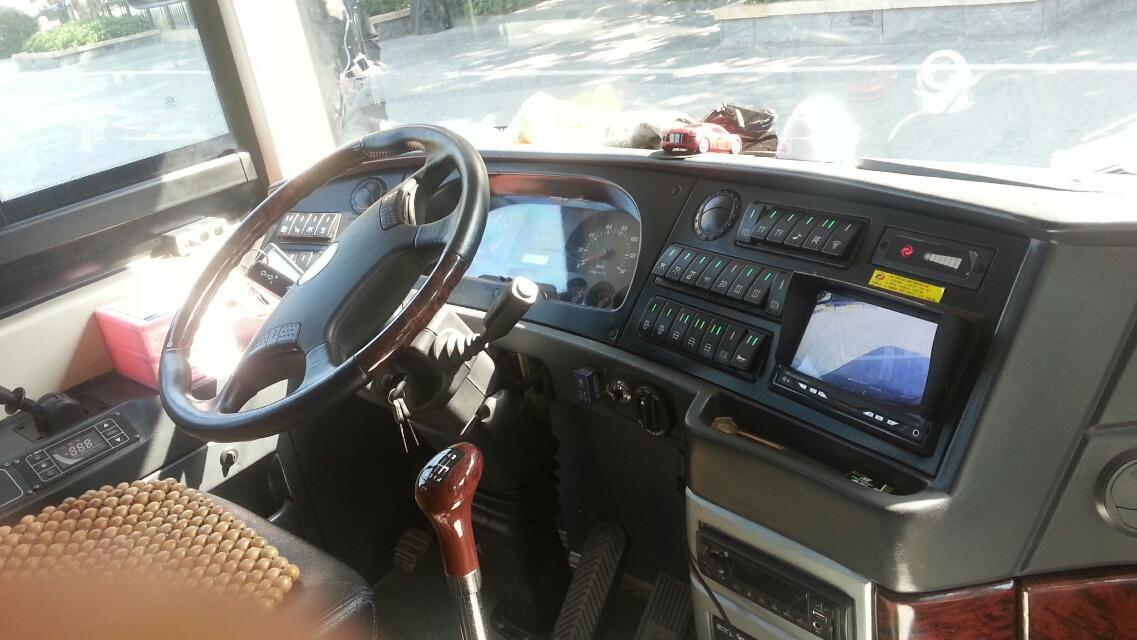

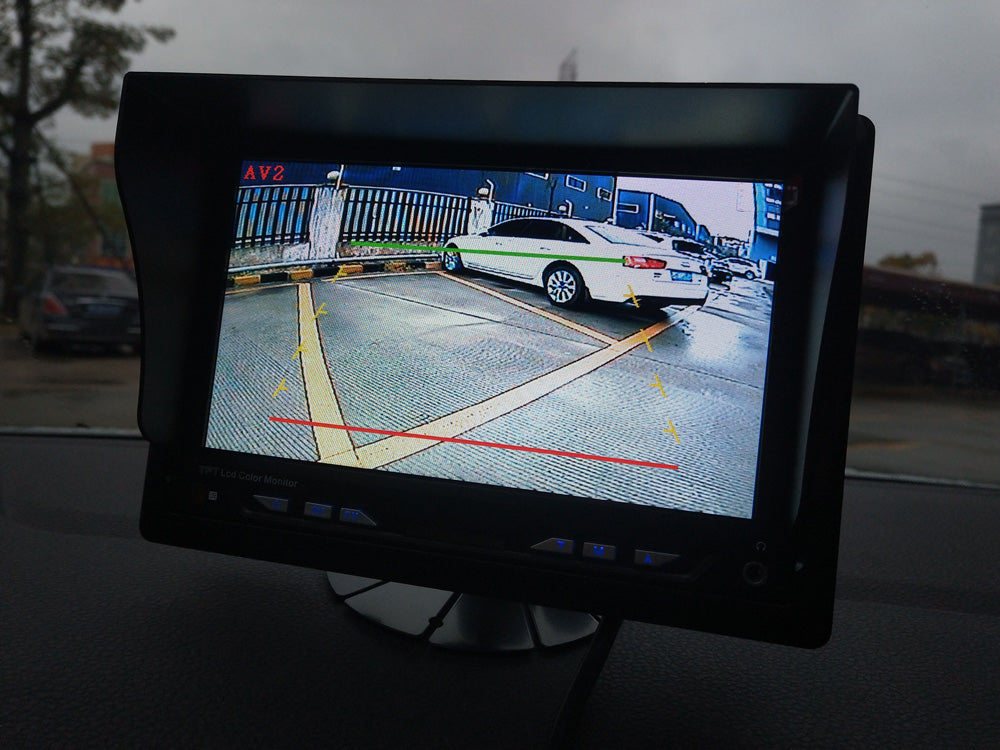

This High Brightness LCD panel is helpful for drivers can get clear video even under the strong sun-light.

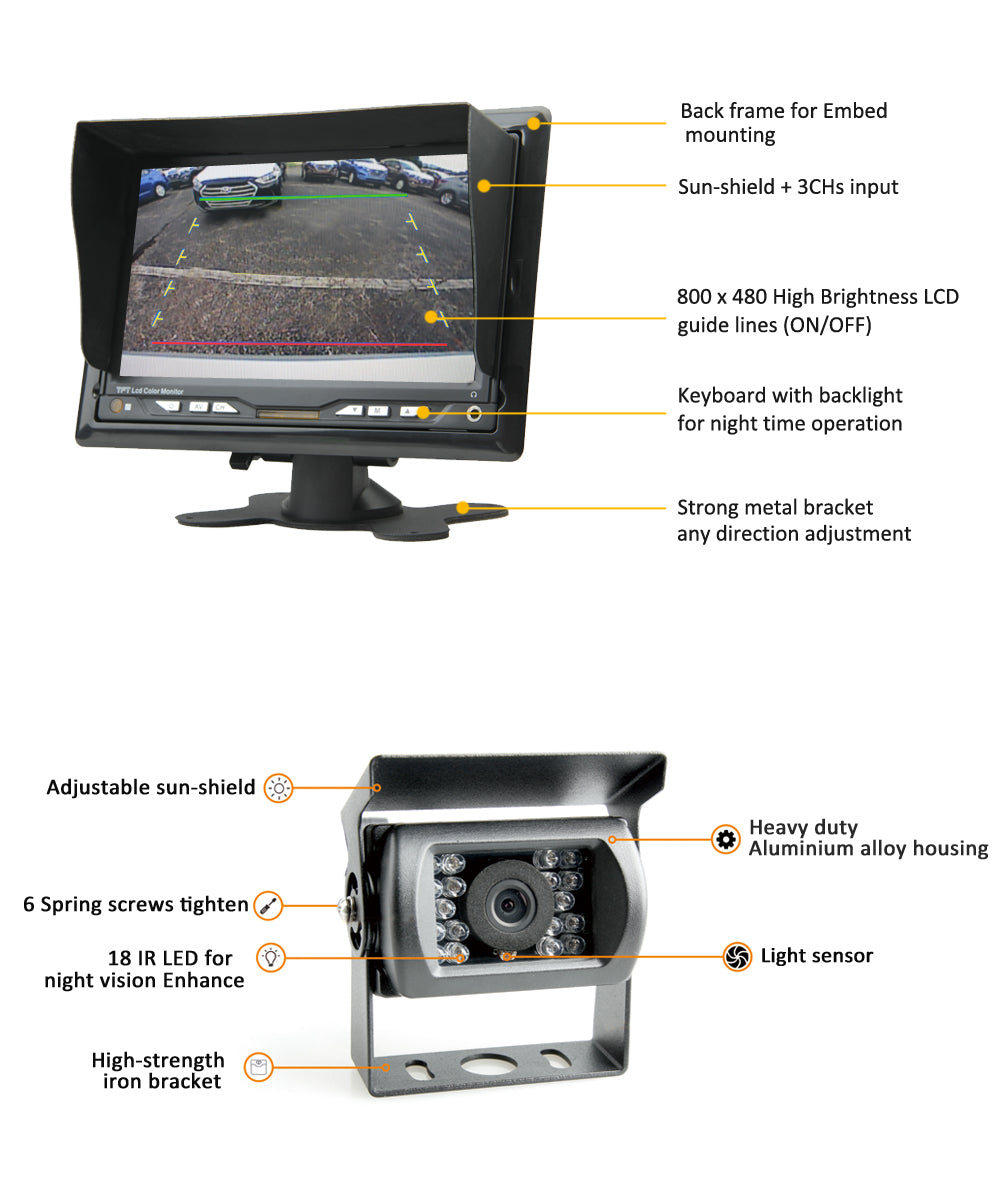

Specifications:
- Screen Size: 7 inches
- Resolution: 800 x 480 Pixels
- Brightness: 450cd/m2
- Contrast Ratio: 450:1
- Screen ratio 16:9/4:3 adjustable
- Video Frequency: PAL/NTSC/ AUTO
- Reverse polarity protection
- Separately power output DC 12V to each camera
- AV2 / AV3 with trigger wires
- Full function remote control
- Keyboard with Backlights for Night time operation
- Mirror / Normal image switch for each camera
Rear view Camera:
- Waterproof IP68 rating: High pressure test based on IP68 standard
- Image Chipset: 1/3" CCD Color Sensor
- 18 IR LED for night vision enhance
- TV system: PAL / NTSC
- Effective pixels: 752×582 pixels
- Lens: 2.5mm
- View angle: 120°diagonal / 90°horizontal
- Power supply: DC 12V
- Operating temperature: -30℃ ~+70℃
- Aluminum alloy housing for heavy duty vehicles.

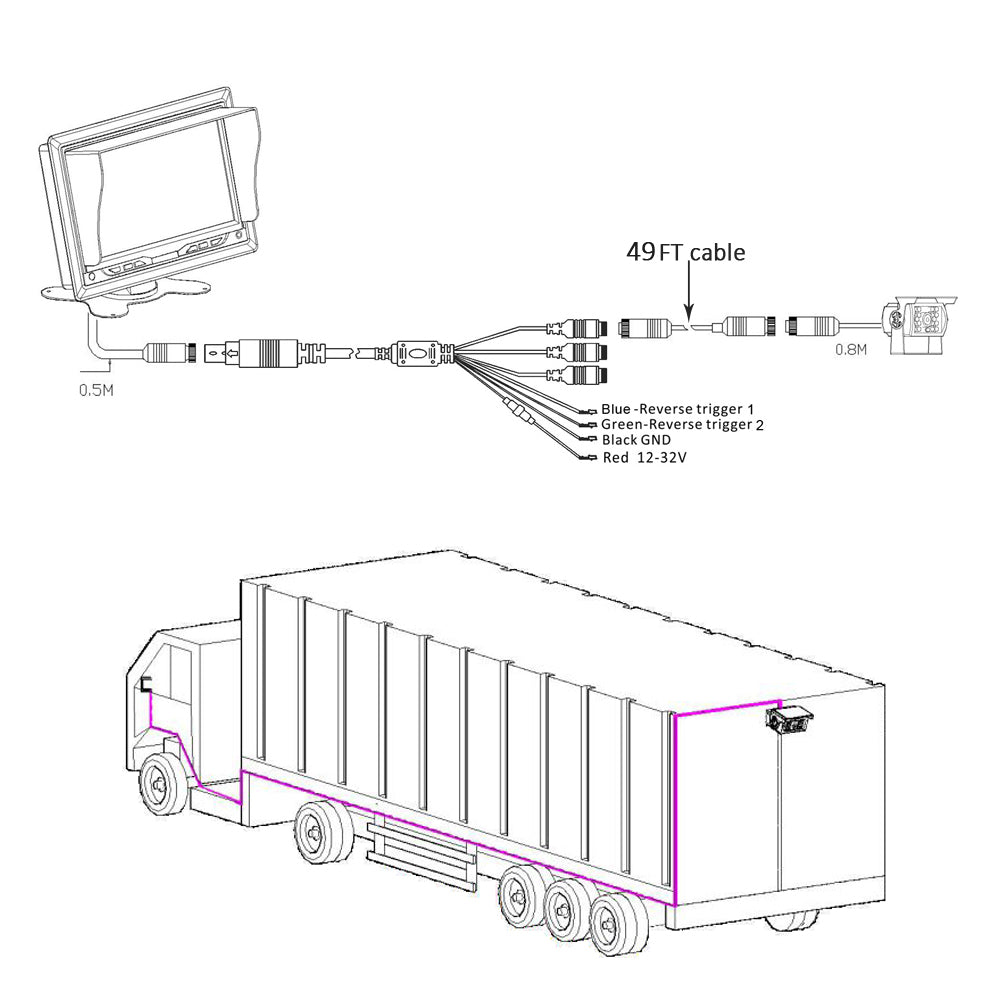

Extension cable:
-- 49FT (15M) video signal with shielding protection.
-- 4-Pin aviation connector screw locked + rubber sleeve for waterproof protected.

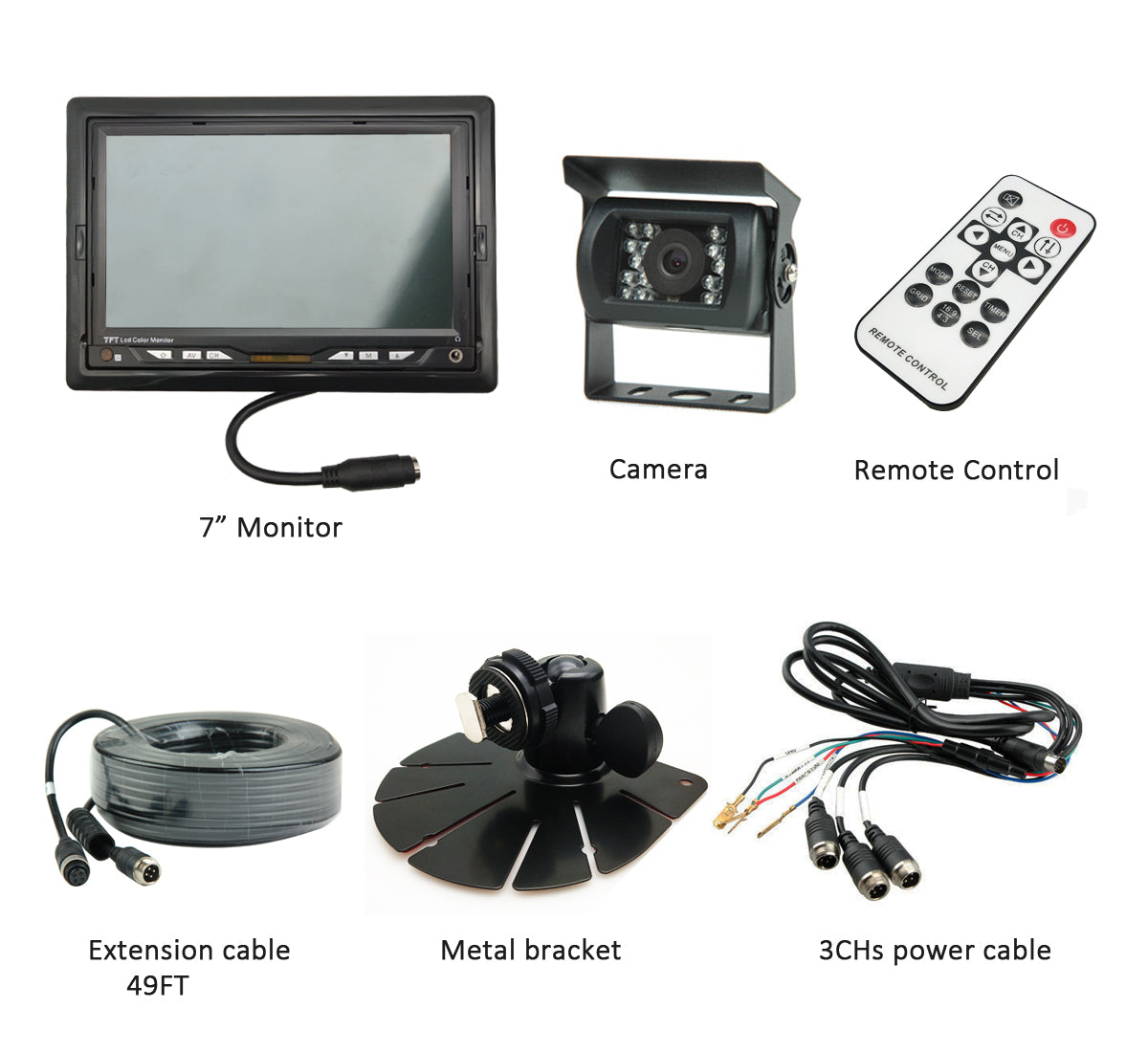

Package Content:
1x 7 Inch Monitor
1x Power Cable
1x Backup Camera
1x 49FT 4-Pin connector extension cable
1x Monitor metal bracket
1x Back frame for embed mounted
1x Sun-shield for Monitor
1x English User Manual
1x Remote control
